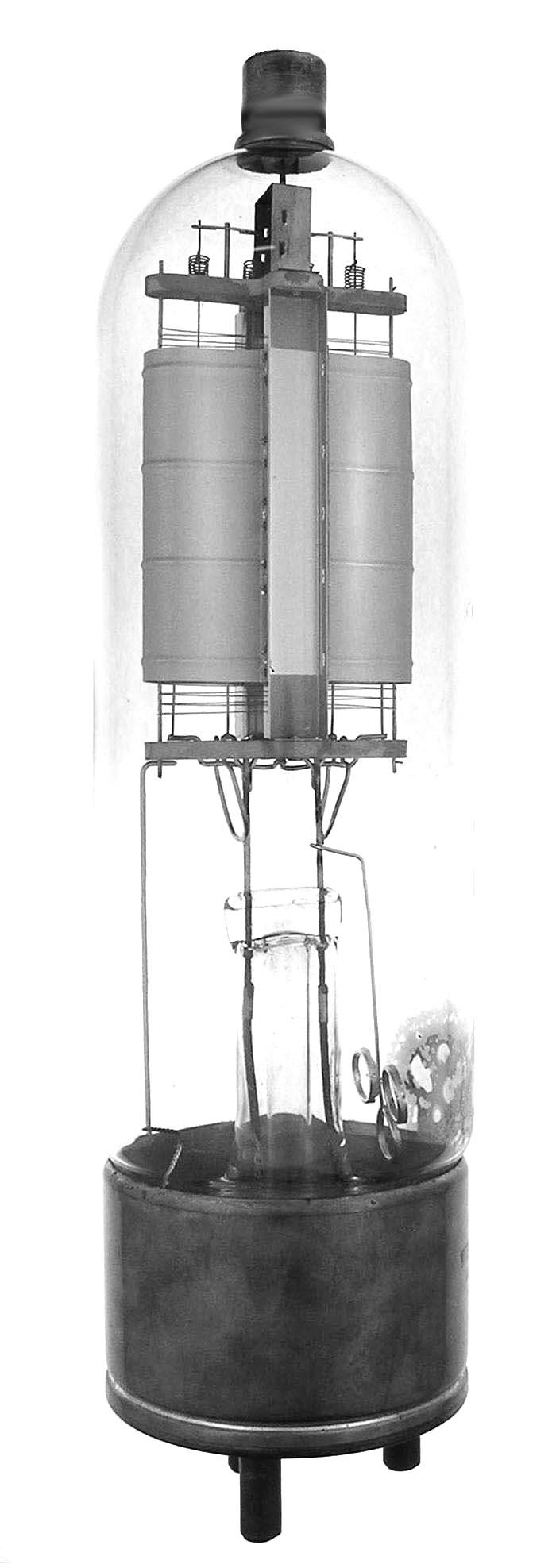

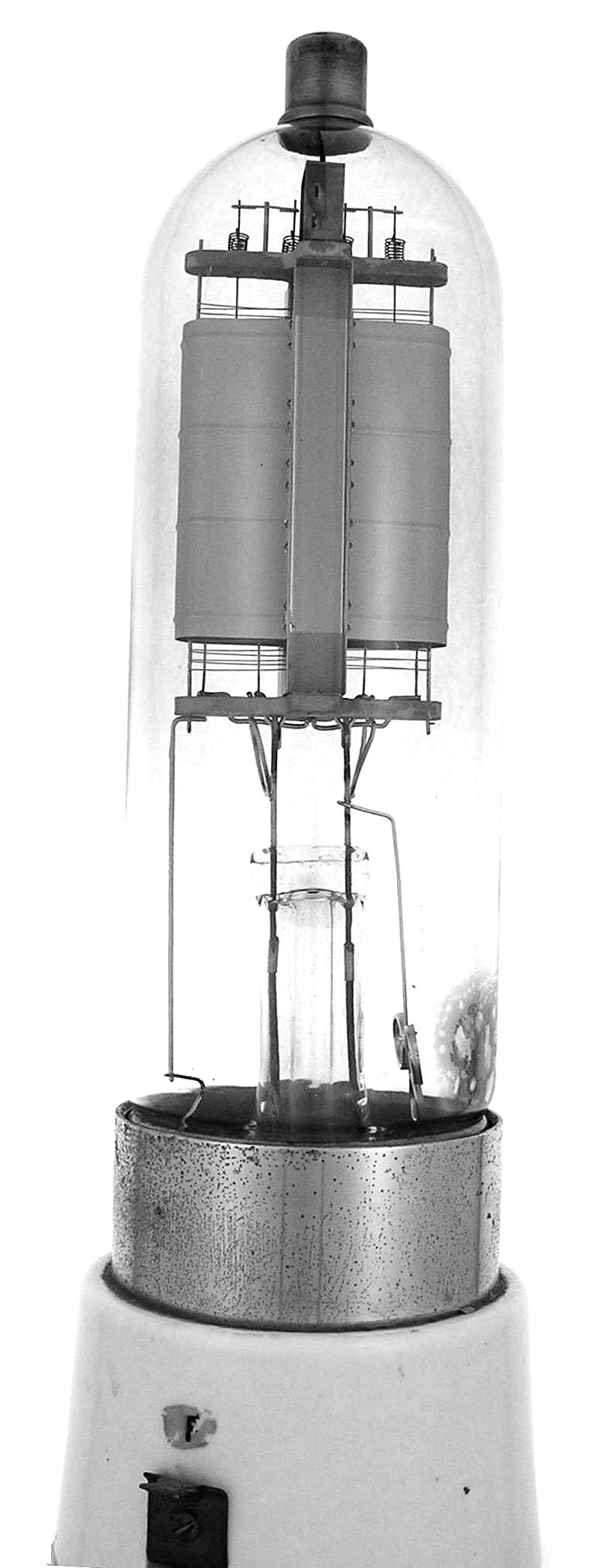

WE241B

The WE241B is a 250 watt triode with a mu of 16 with a maximum full rating frequency of 7.5 MHz. Made by Western Electric.

Length = 13.25" Diameter = 3.25"
Max voltage = 2000
Max current = 200 ma
Fil voltage = 14
Fil current = 6 amps         GOTO INDEX
