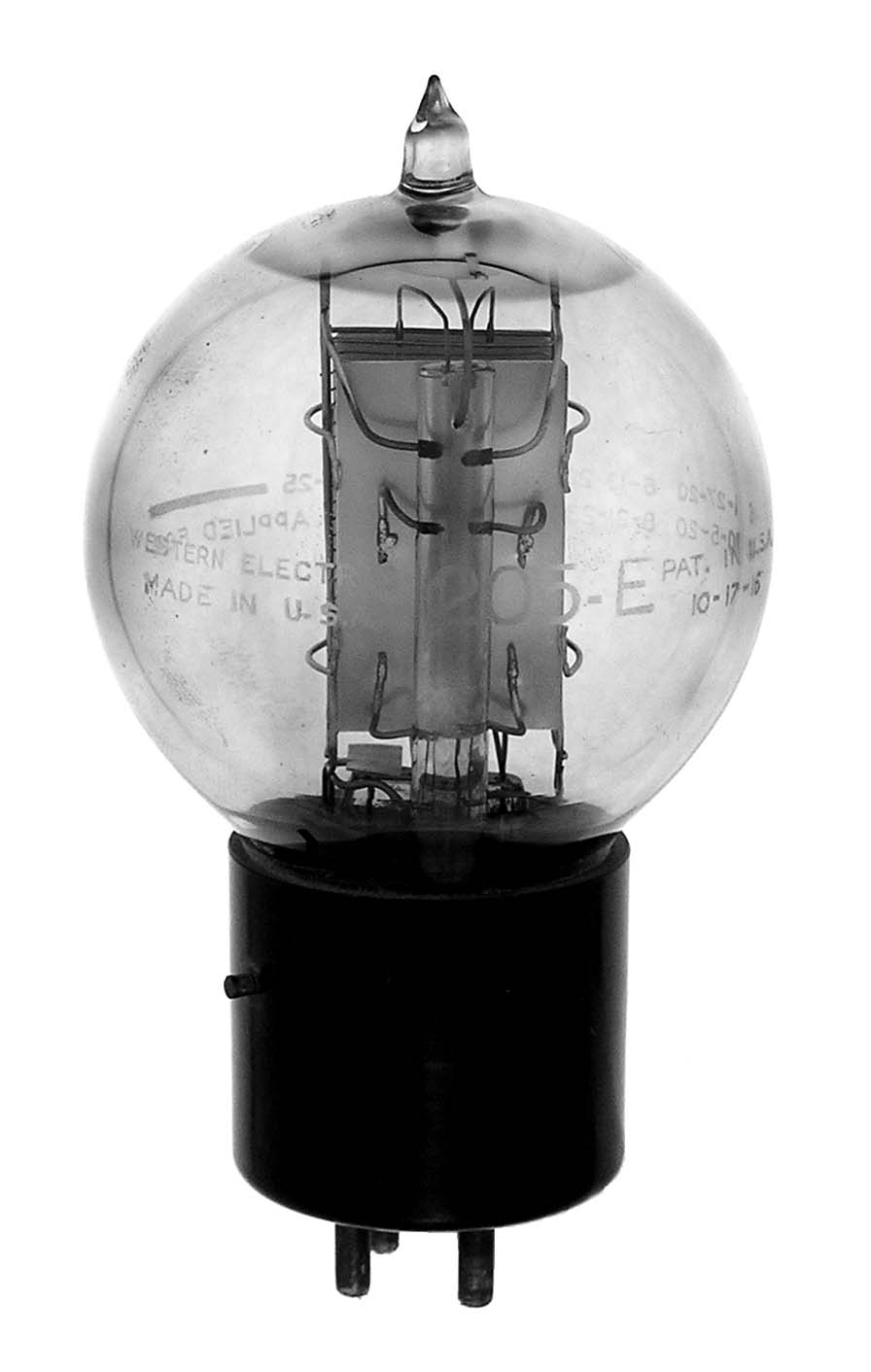

WE205E

The WE205E is a 14 watt triode with a mu of 7.3 and usable to 30 MHz. Same as the WE205D except for special contacts in the pins to avoid noise.

Length = 4.50" Diameter = 2.37"
Max voltage = 400
Max current = 50 ma
Fil voltage = 4.5
Fil current = 1.6 amps
Data sheet:
