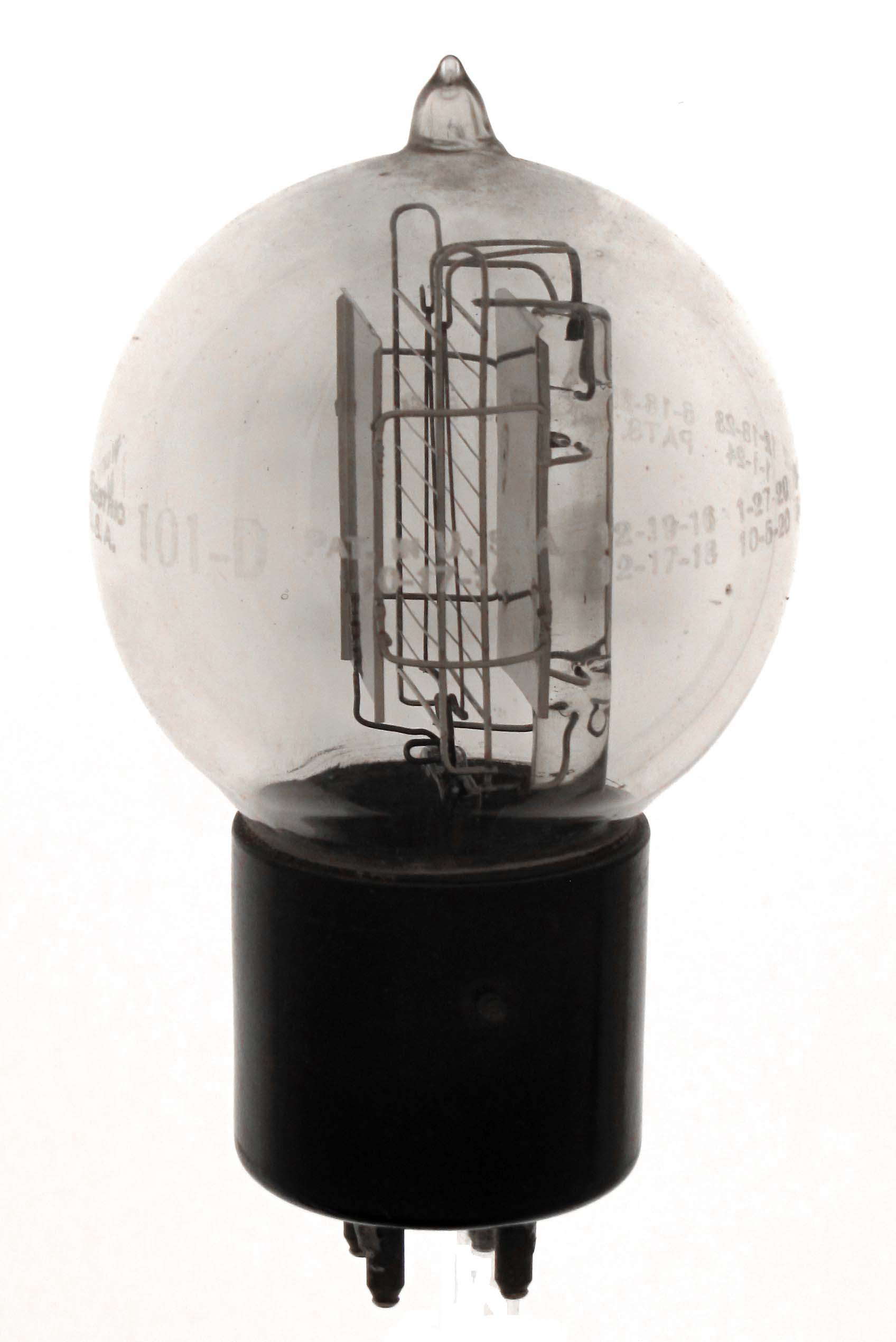

WE101D

The WE101D is a triode with a mu of 6.2 that was designed by Western Electric to be a telephone repeater amplifier.

Length = 4.50" Diameter = 2.37"
Max voltage = 130
Max current = 7.5 ma
Fil voltage = 4.5
Fil current = 1.15 amps         GOTO INDEX
