WD-24

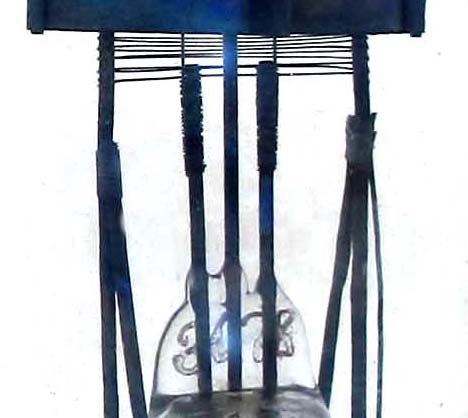

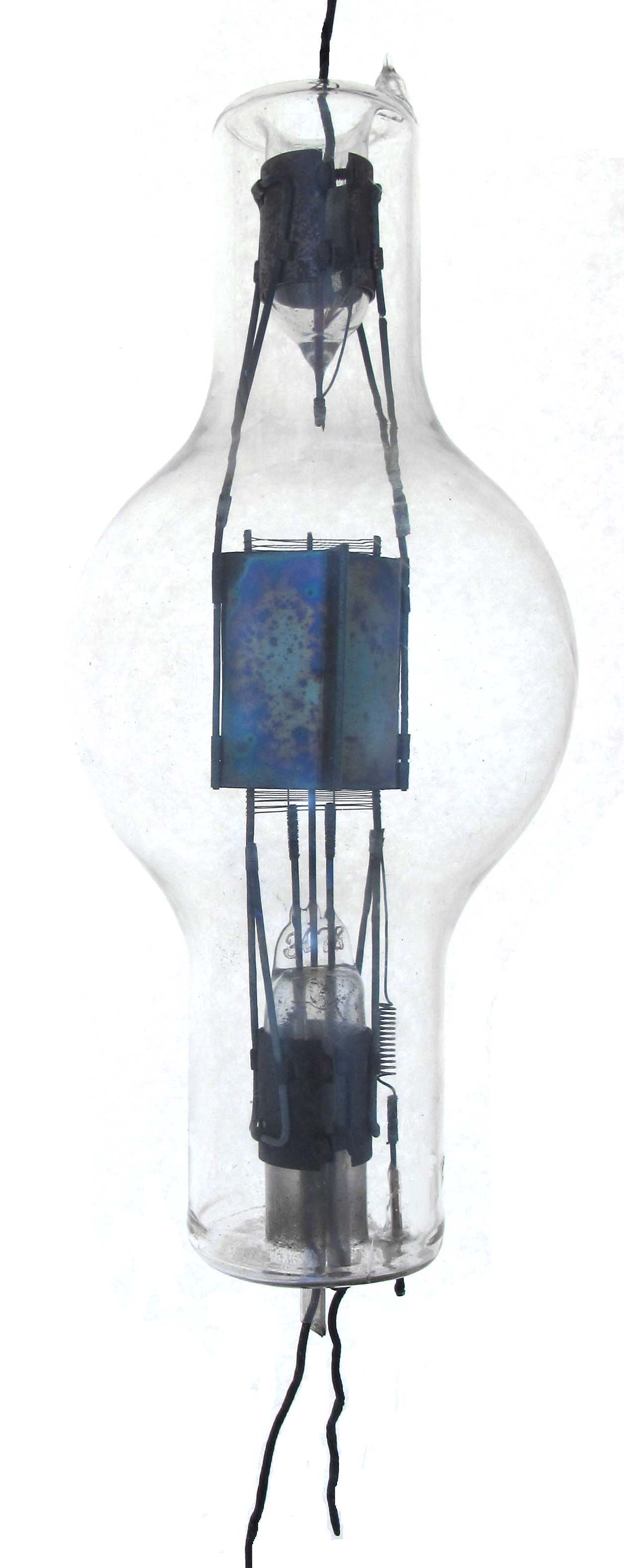

The WD-24 is an early 250 watt triode made by Westinghouse. The filament wires are attached to the heavy rods in the filament press by wrapping many turns of small wire around the filament wire and the post.

Length = 12.00" Diameter = 4.87"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 10
Fil current = 15 amps         GOTO INDEX
