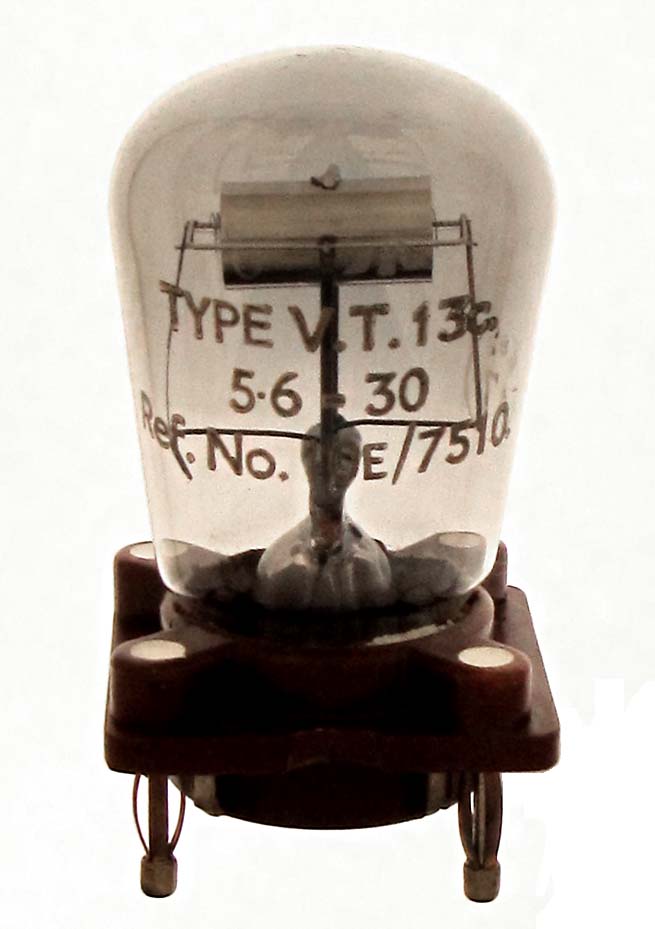

VT 13C

The VT 13C or CV1562 is a 30 watt British transmitting triode with a mu of 35 and a maximum frequency of 6 MHz made by Ediswan. The earlier version of this tube was the first to use the "L4" base.


Length = 4.12" Diameter = 2.19" (bulb)
Max voltage = 1500
Max current =
Fil voltage = 5.6
Fil current = 1.45 amps         GOTO INDEX
