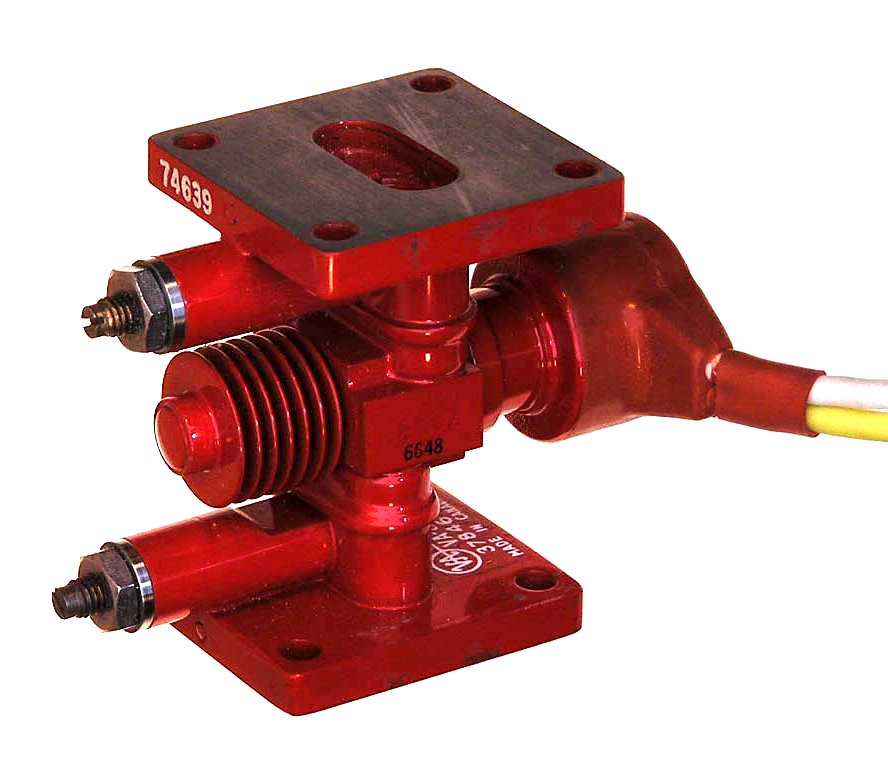

The VA-824B is a 2 watt klystron with WR-90 waveguide input and output. It provides 10 db gain at 9.8 GHz. Made by Varian,
Length = 3.25" Width = 2.25" (FLANGE TO FLANGE))
Max resonator voltage = 750
Resonator current = 60 ma
Fil voltage = 6.3
Fil current = GOTO INDEX
