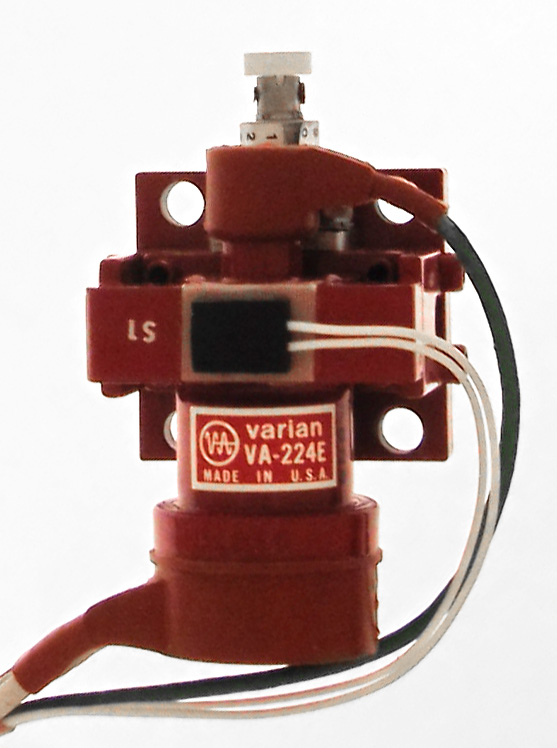

The VA-224E is a 600 mW klystron made by Varian. Operation between 8.2 and 12.4 GHz. Specifications also apply to the VA-224B.
Length = 3.25" Diameter = 2.10"
Max resonator voltage = 800
Reflector voltage range = -75 to -1000
Fil voltage = 6.3
Fil current = .6 to .8 amps GOTO INDEX
