VA-220Z

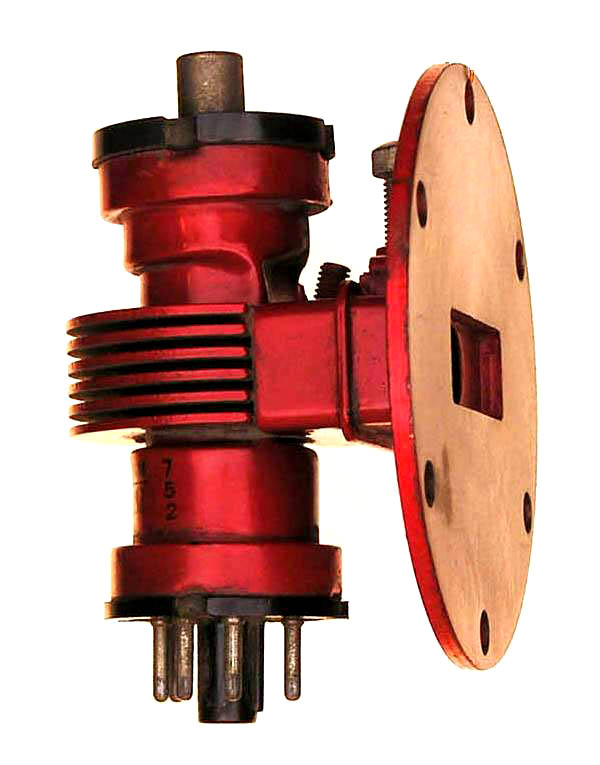

The VA-220Z is a 1.1 watt klystron made by Varian. It will operate from 6.425 to 6.575 GHz.

Length = 3.50" Diameter = 3.00" (FLANGE)
Max resonator voltage = 750
Reflector voltage range =
Fil voltage = 6.3
Fil current = .8 amps         GOTO INDEX
