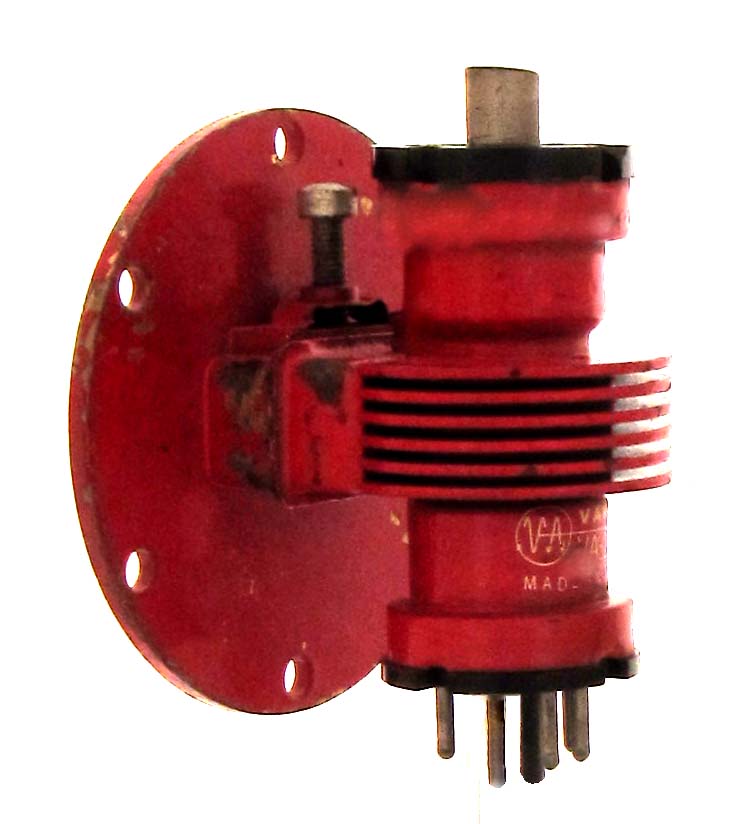

The VA-220B is a 1.1 watt klystron made by Varian. It will operate from 6.950 to 7.250 GHz. Length = 3.50" Diameter = 3.13" (FLANGE) Max resonator voltage = 750 Reflector voltage range = Fil voltage = 6.3 Fil current = .8 amps GOTO INDEX
The VA-220B is a 1.1 watt klystron made by Varian. It will operate from 6.950 to 7.250 GHz.
