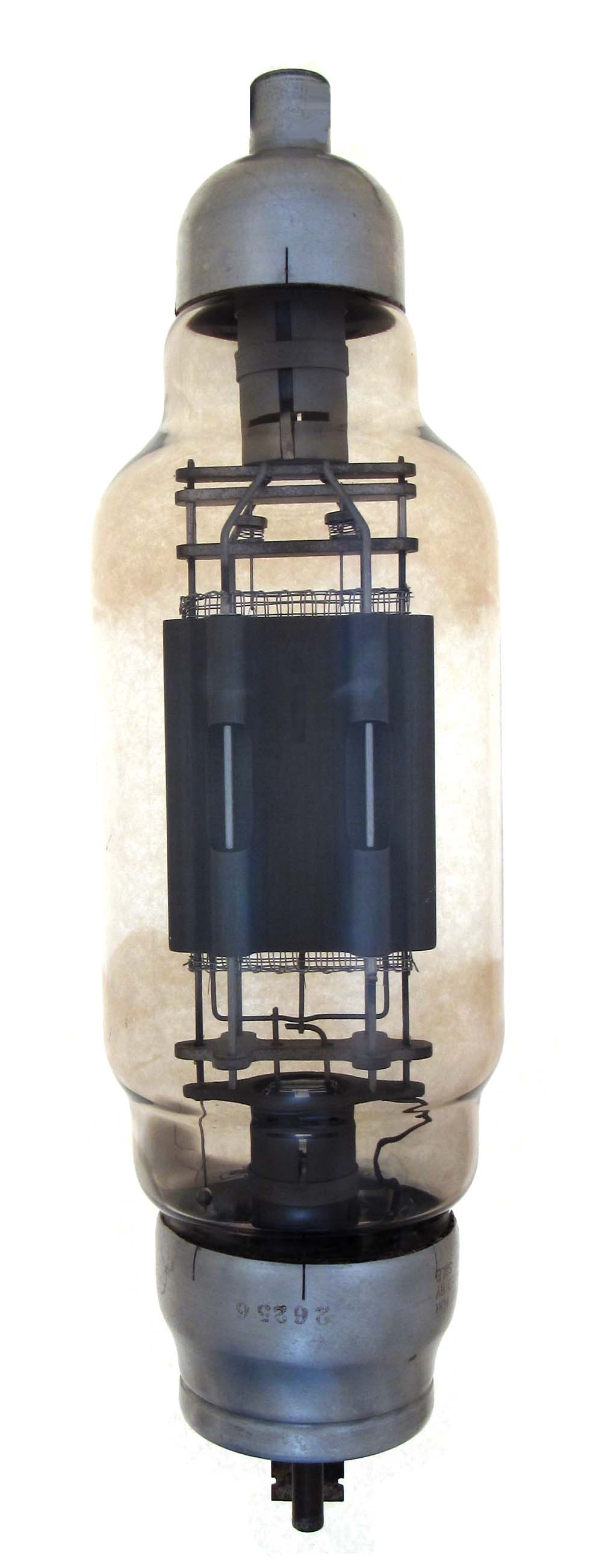

UV849

The UV849 is a 400 watt triode with a mu of 19. Maximum frequency for full power is 3 MHz. Developed by RCA in 1928 and renamed the 849 in the 1930s.

Length = 14.37" Diameter = 4.06"
Max voltage = 2500
Max current = 300 ma
Fil voltage = 11
Fil current = 5 amps         GOTO INDEX
