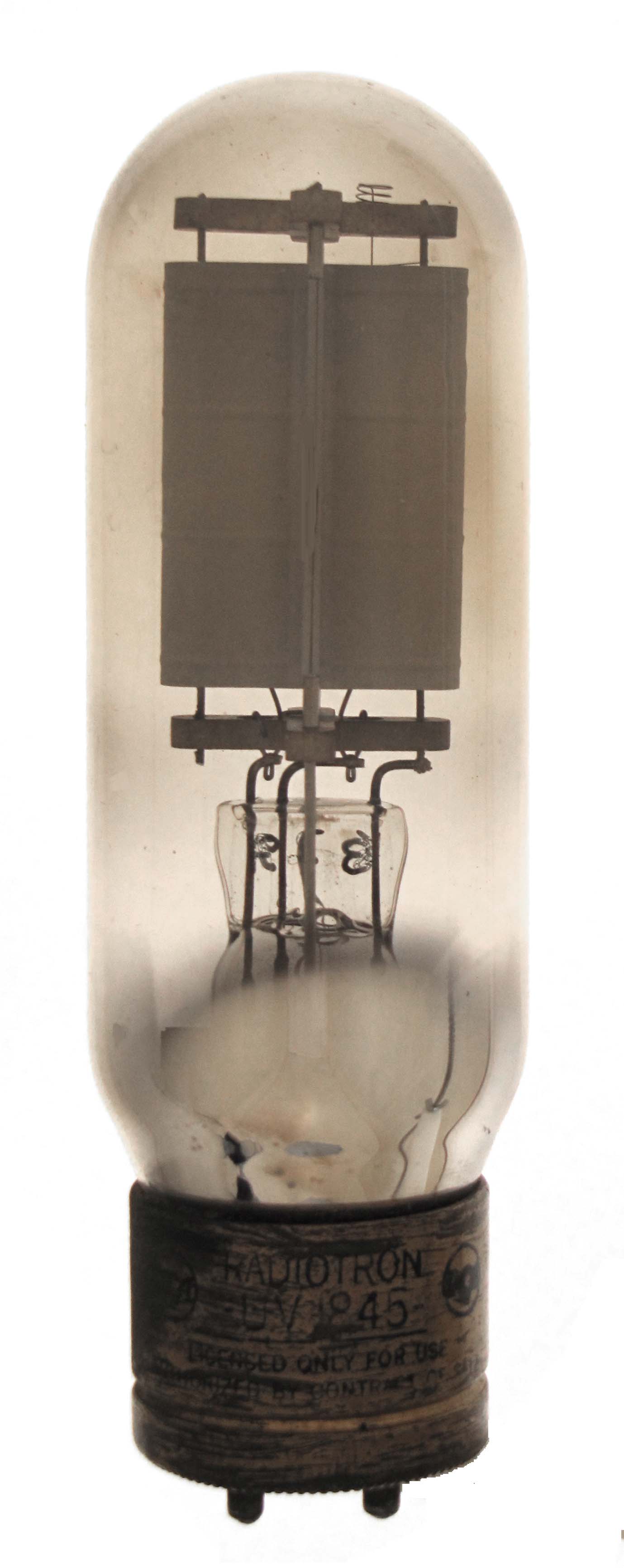

UV845

The UV845 is a general purpose, 75 watt, triode with a mu of 5.3 that was designed to be an audio amplifier tube. They were first available in 1928. These tubes were replaced by the 845.

Length = 7.87" Diameter = 2.31"
Max voltage = 1250
Max current = 75 ma
Fil voltage = 10
Fil current = 3.25         GOTO INDEX
