UV-816D

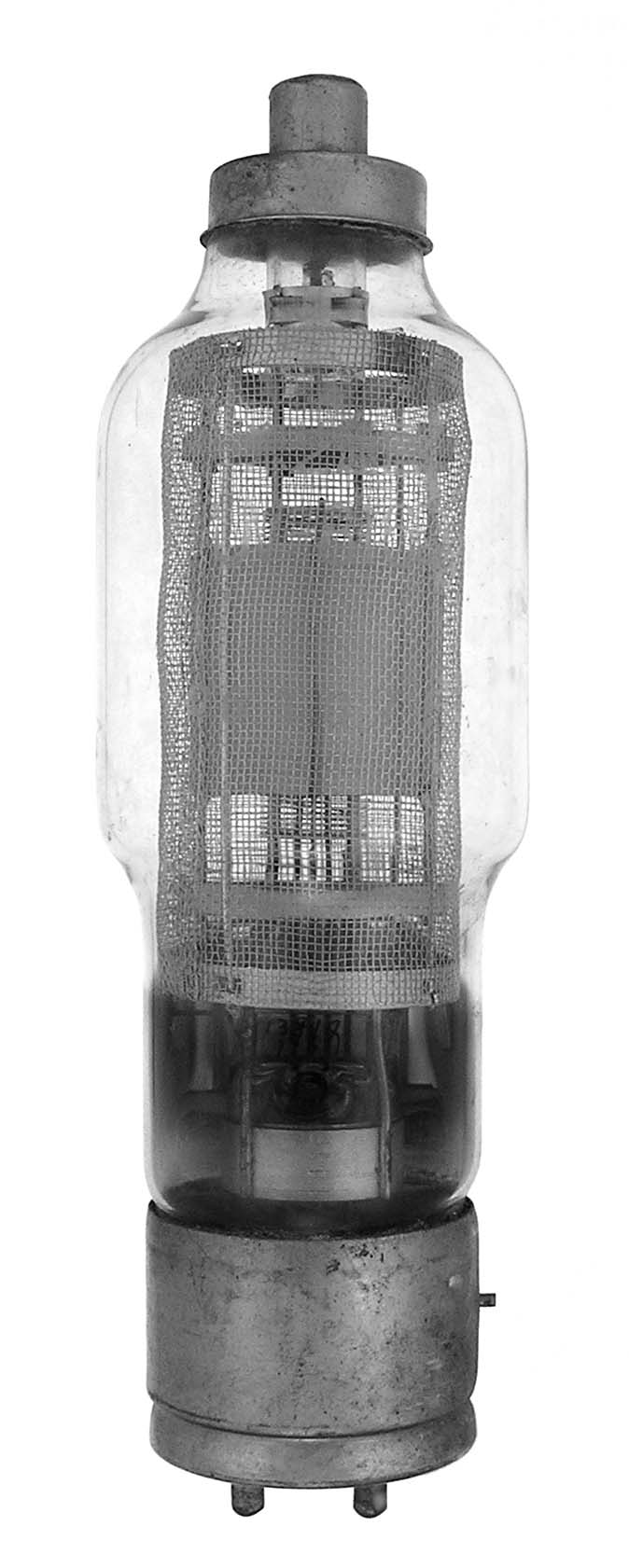

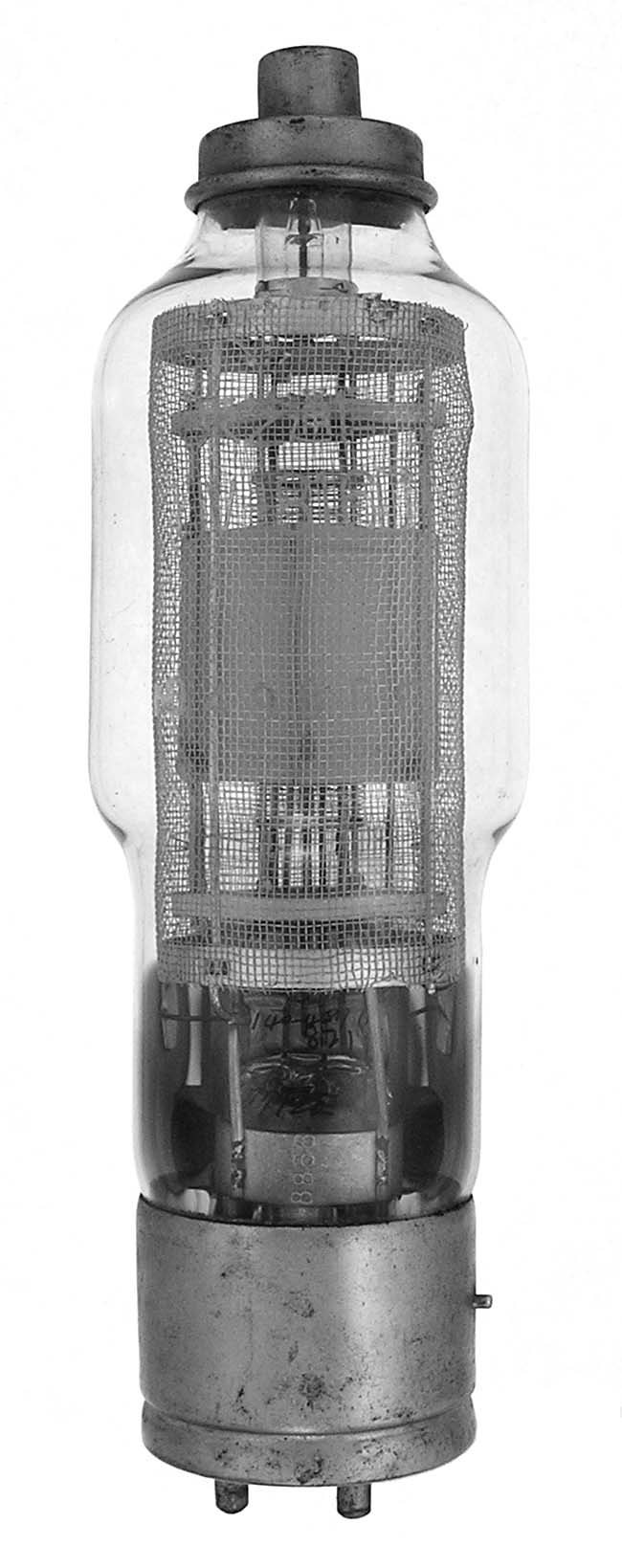

The UV-816D is a 60 watt tetrode with a maximum frequency of 15 MHz made for use by the Japanese military in WWII. The first example was made by Tokyo Electric (Toshiba) and the second with a slightly different plate cap, by Matsuda.

Length = 7.87" Diameter = 2.25"
Max voltage = 1200
Max current =
Fil voltage = 10
Fil current = 2.5         GOTO INDEX
