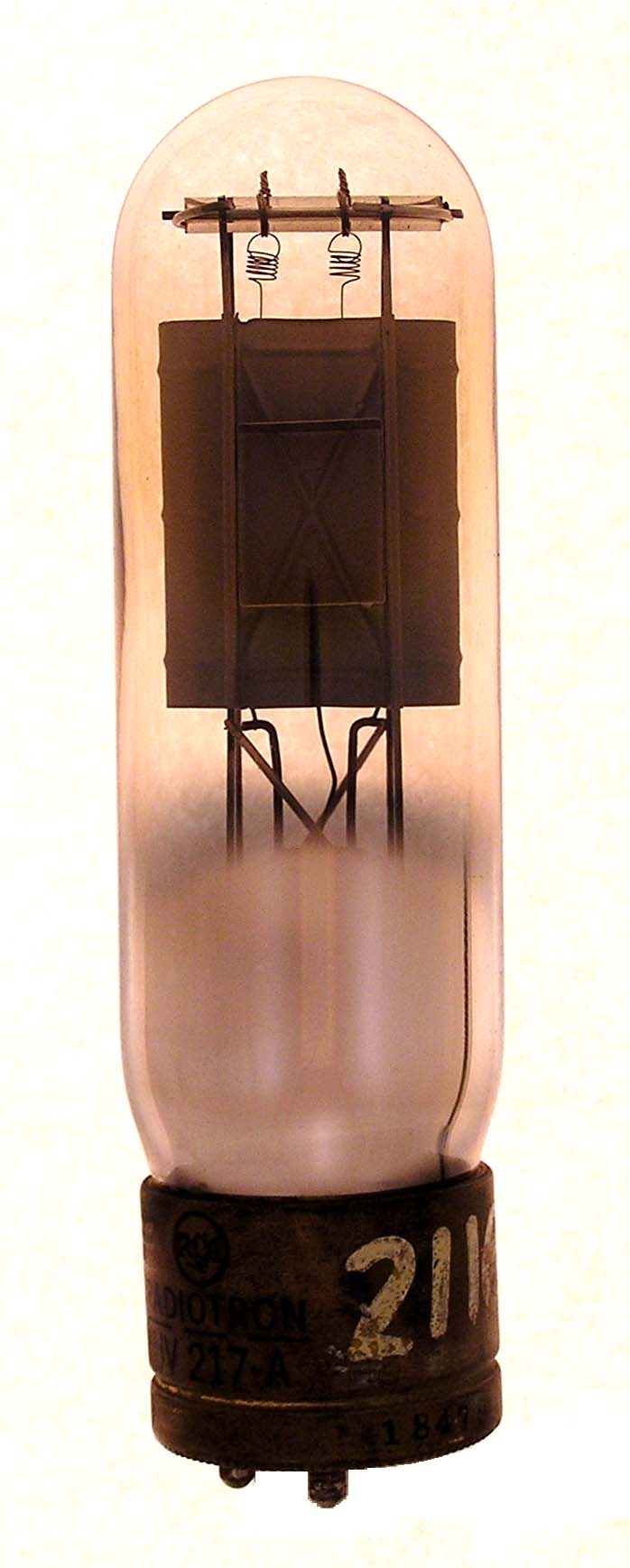

UV217A

The UV217A "Rectron" is an early high voltage rectifier ca 1924 that replaced the mica base insulated UV217. A gridless UV203A.

Length = 7.87" Diameter = 2.31"
Max voltage = 1500 RMS
Max current = 200 ma
Fil voltage = 10
Fil current = 3.25         GOTO INDEX
