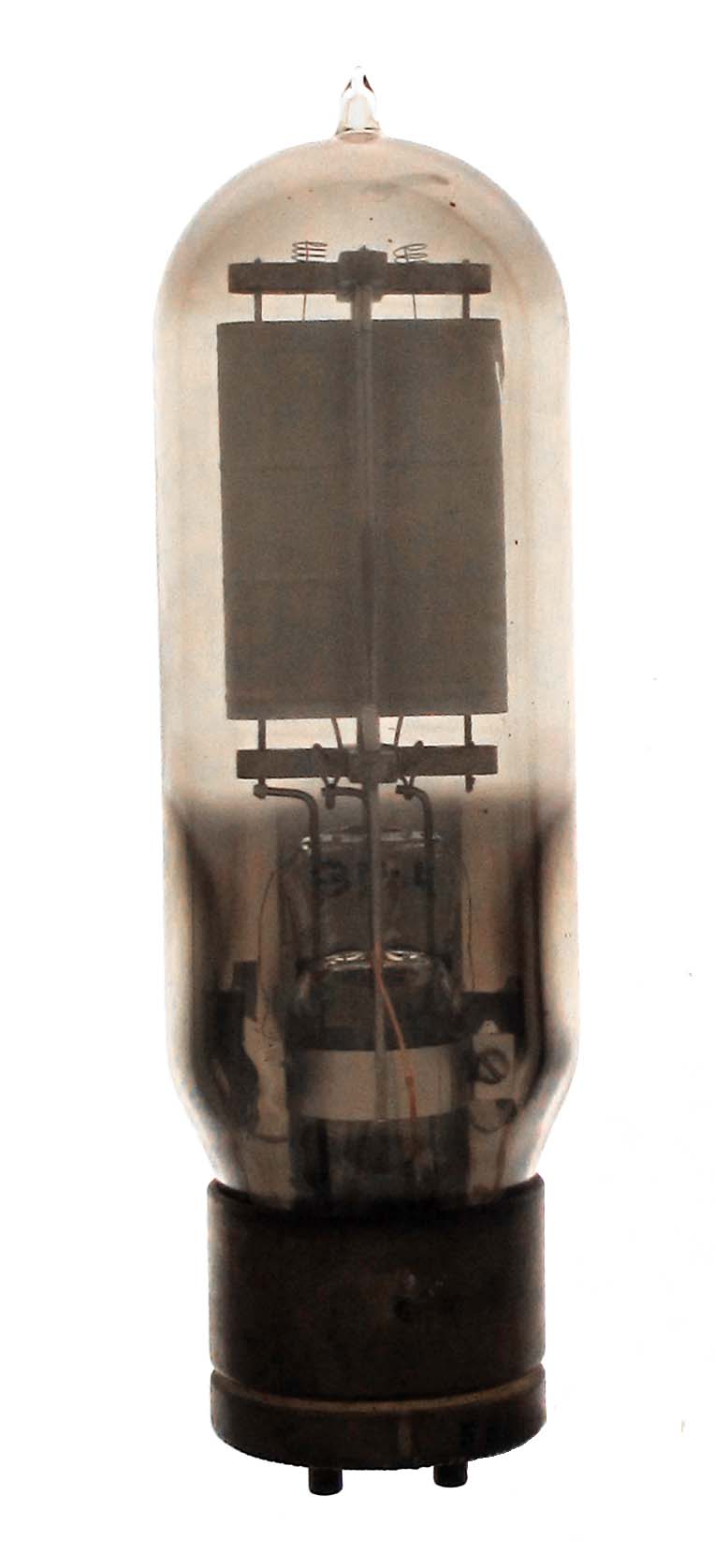

UV203A

The UV203A is a 100 watt triode with a mu of 25. Maximum frequency for full power is 15 MHz. These tubes replaced the UV203 that was smaller in diameter and had all elements soported by the filament ptess. The UV203A had a larger diameter, internal ceramic insulators and a much larger anode.

Length = 7.87" Diameter = 2.20"
Max voltage = 1250
Max current = 220
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
