UNK 5

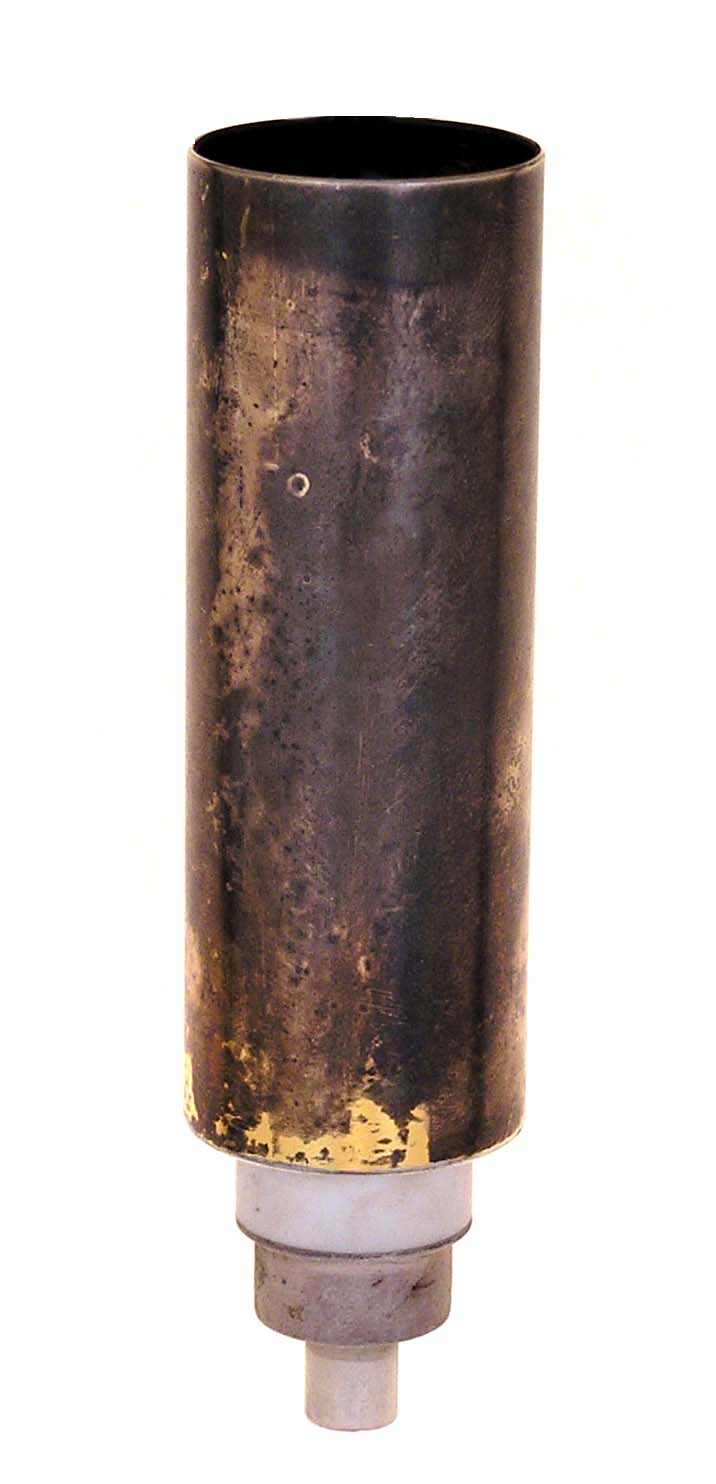

Unknown planar triode. The cylinder soldered to the anode of the tube, appears to be a waveguide section. NSN 5960-00-087-7011 Air Force circa 1989.

Length = 4.25" Diameter = 1.13"
Max voltage =
Max current =
Fil voltage =
Fil current =         GOTO INDEX
