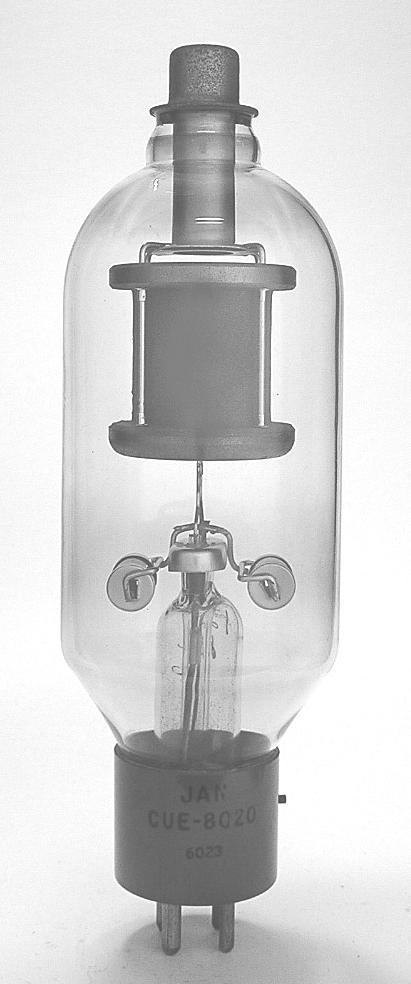

UE8020

The United Electronics 8020 is a half wave rectifier designed for high voltage and low current. It is phycially different from the RCA 8020.

Length = 7.37" Diameter = 2.12"
Max voltage = 40000 PIV
Max current = 750 ma peak
Fil voltage = 5
Fil current = 6 amps         GOTO INDEX
