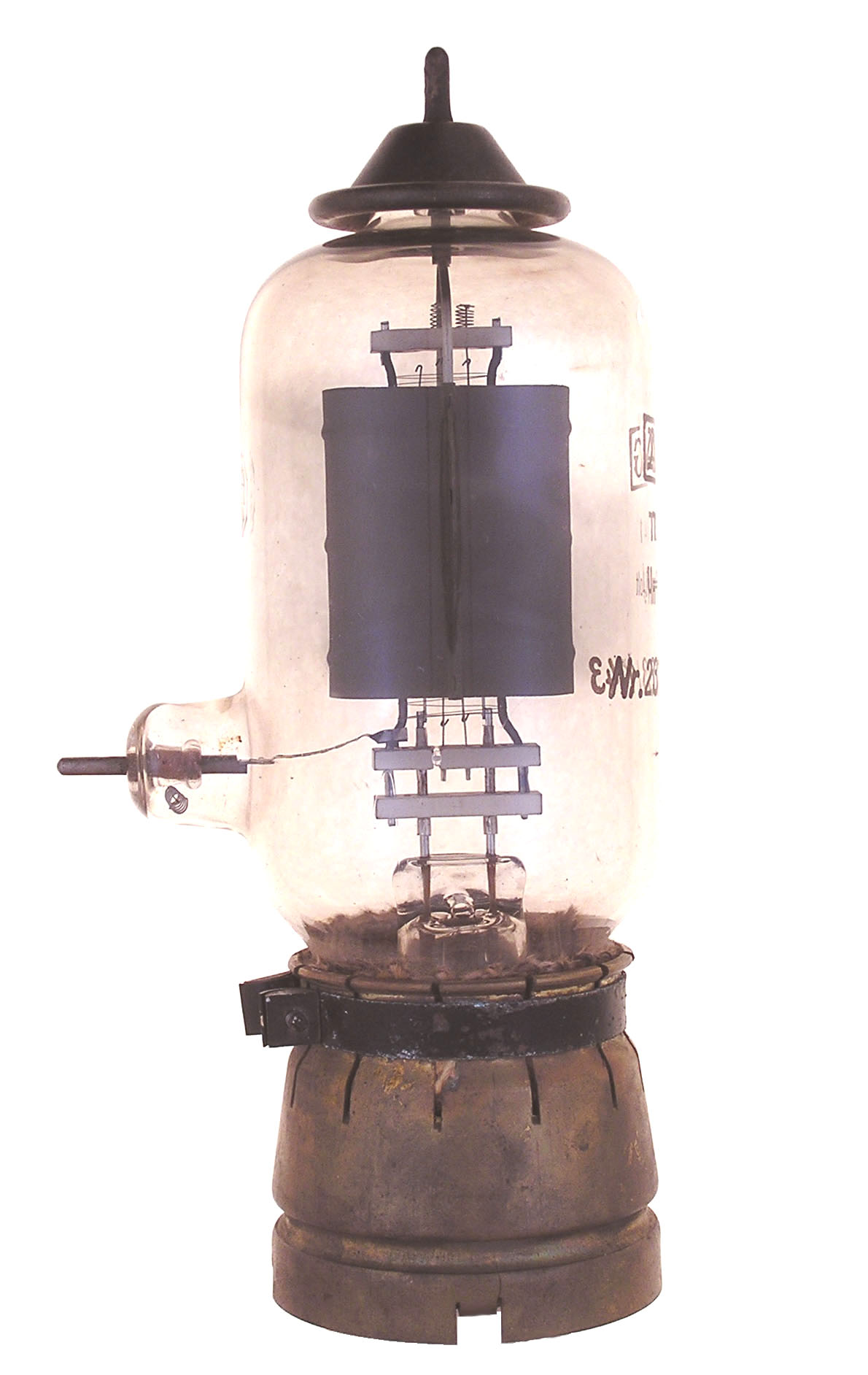

The TS41 is a 150 watt, VHF, triode made by AEG for the German military in WWII. Used in the Freya long range search RADARs.
Length = 7.50" Diameter = 2.37"
Max voltage = 2000 (8000 pulse)
Max current = 250 ma (5 amp pulse)
Fil voltage = 10.5
Fil current = 11 amps GOTO INDEX
