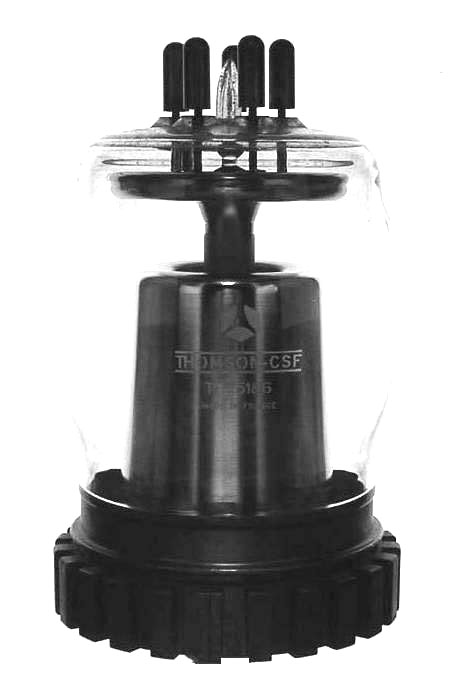

TH 5186

The TH 5186 is a 1500 watt dissipation tetrode designed for pulse modulator service. It is designed to be cooled by oil emersion.

Length = 8.25" Diameter = 5.00"
Max voltage = 100 kv
Max current = 5 amp peak
Fil voltage = 7.5
Fil current = 17 amps         GOTO INDEX
