TC2/250

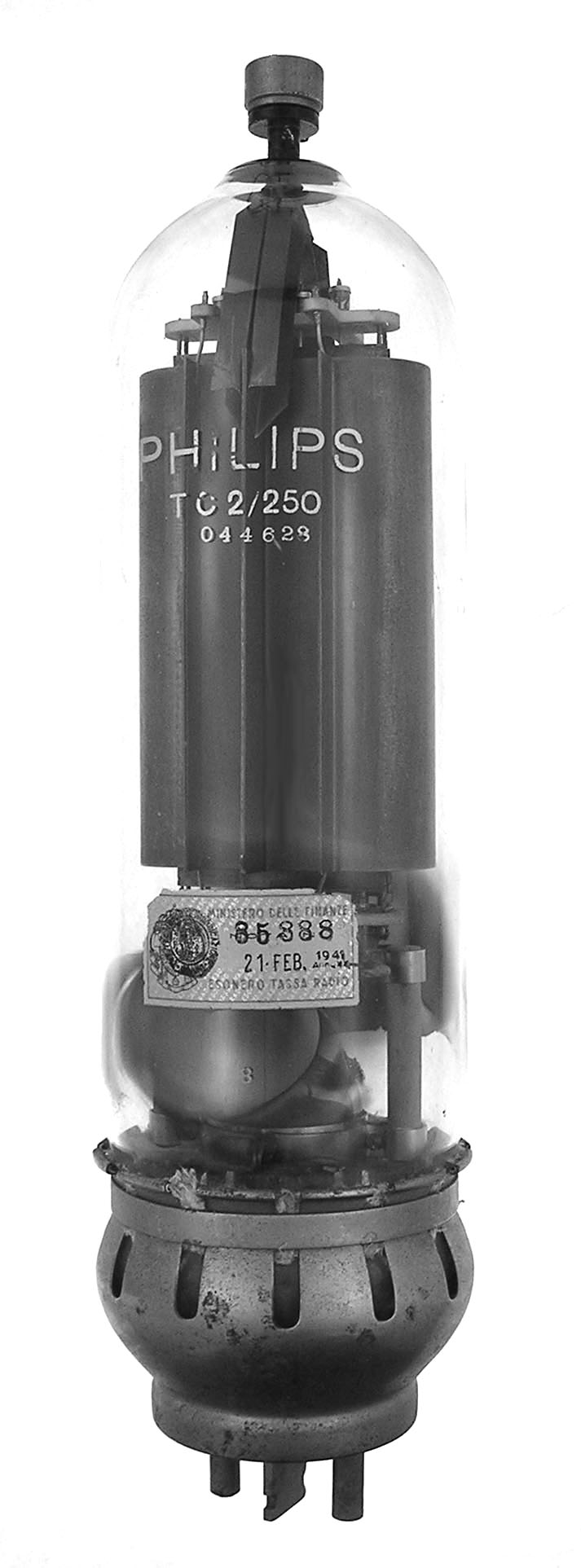

The TC2/250 is a 250 watt triode made by Philips from 1925 to WWII. This example was used by the Italian Air Force (1941 date). The TC2/250 was used in high power ground transmitters AT 1000 as an RF amp and AT 800 Seconda Serie as a modulator.

Length = 14.25" Diameter = 3.25" (GLASS) 3.50" (BASE)
Max voltage = 2000
Max current =
Fil voltage = 11
Fil current = 2.5 amps         GOTO INDEX
