TB-35/3D23

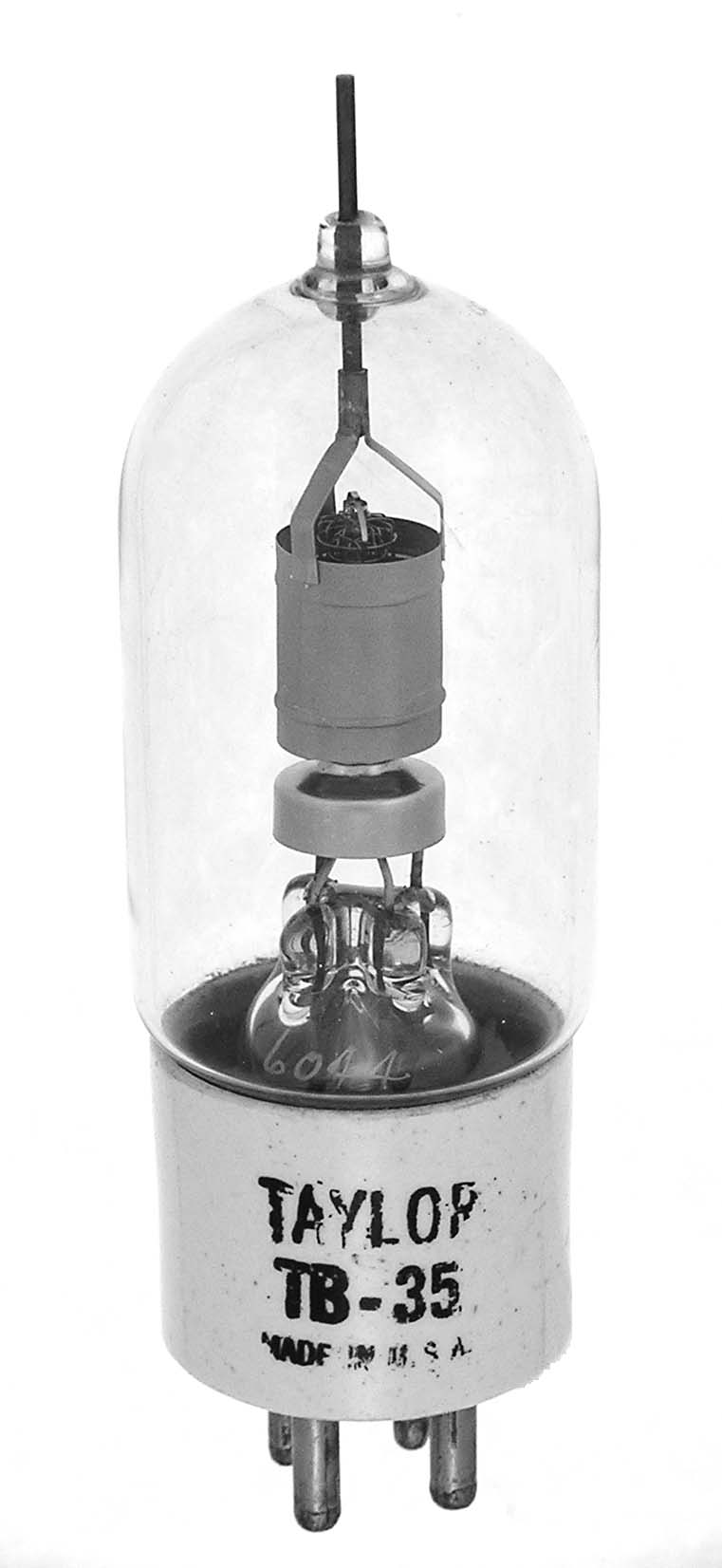

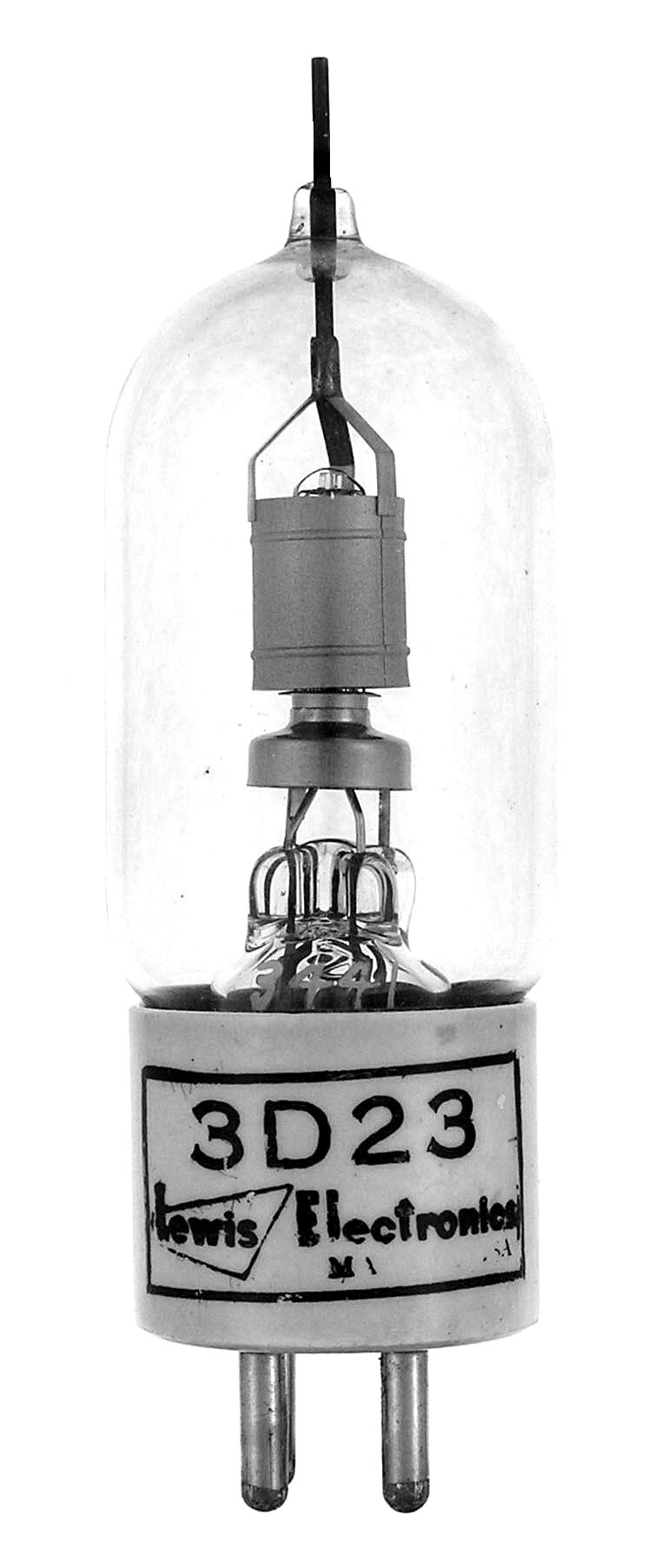

The TB35 or 3D23 is a 35 watt tetrode with full ratings to 250 MHz. Announced in March, 1946 by Taylor. Lewis announced the 3D23 in the same publication.

Length = 4.75" Diameter = 1.50"
Max voltage = 1500
Max current = 110 ma
Fil voltage = 6.3
Fil current = 3 amps         GOTO INDEX
