TB2/250

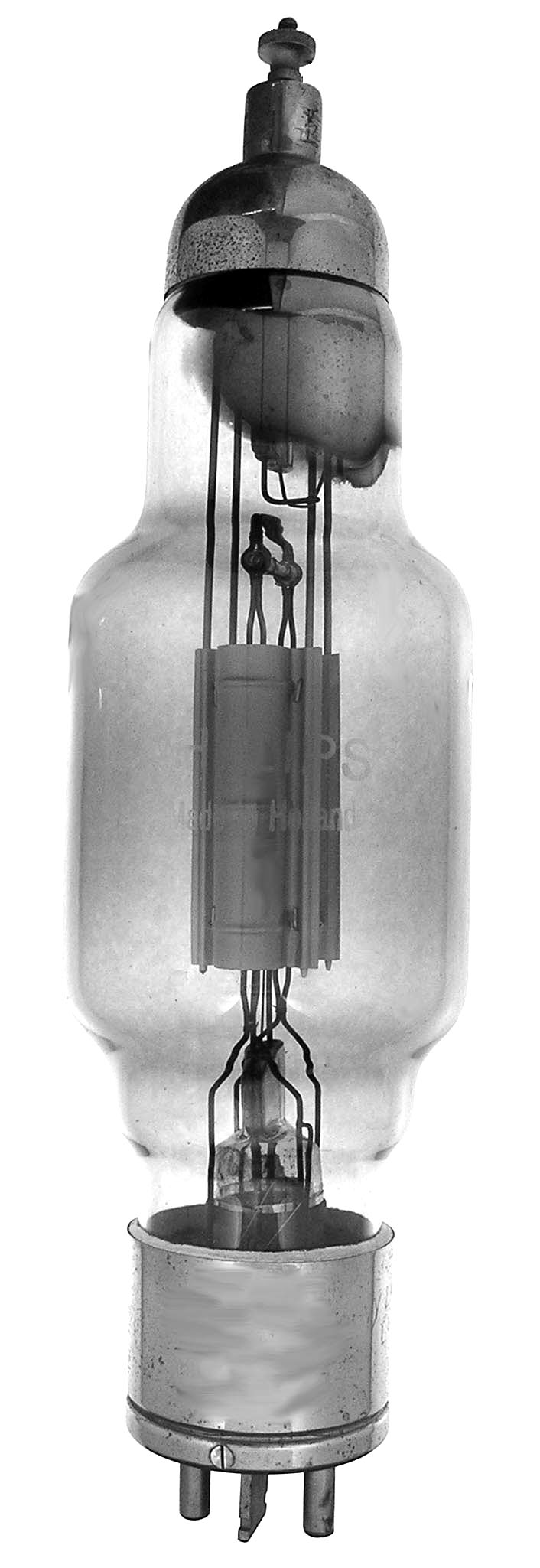

The TB2/250 is a triode based on the 204A . This example was made by Phillips in Holland and has a screw on contact on the plate cap.

Length = 15.12" Diameter = 3.75"
Max voltage = 2500 piv
Max current = 250 ma
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
