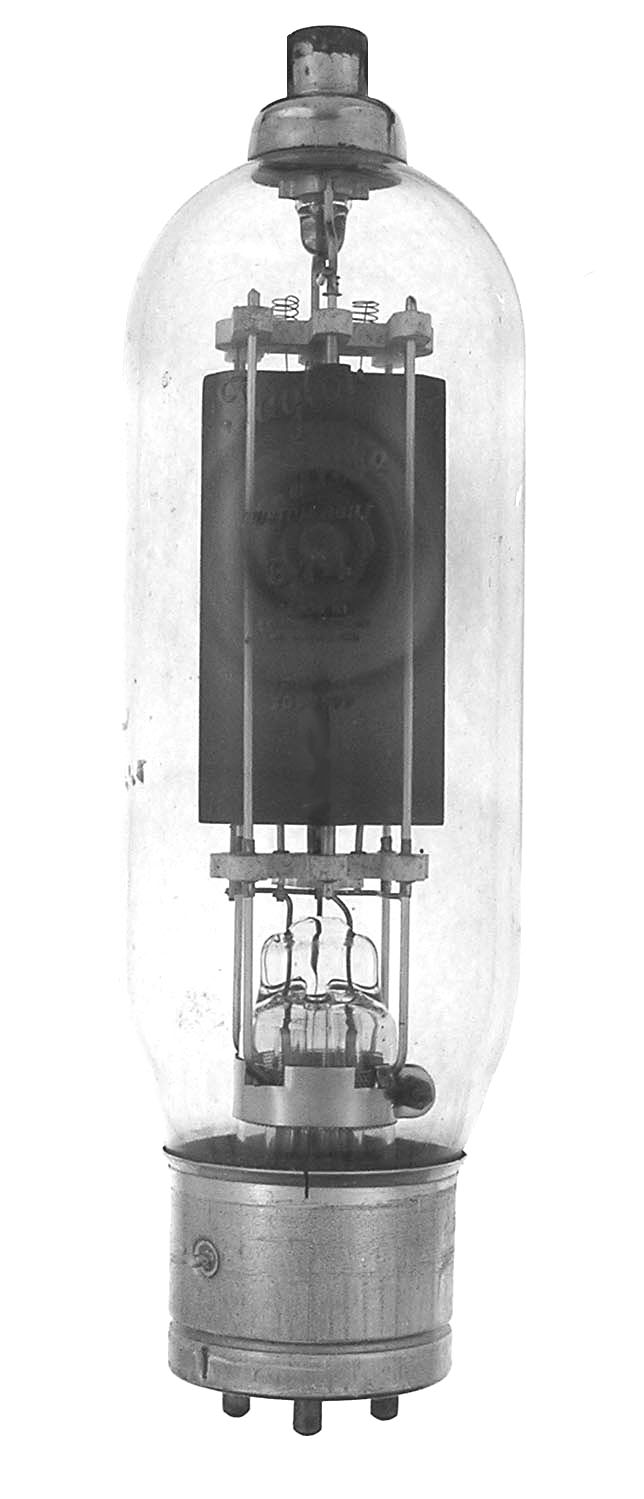

814 (TAYLOR)

The Taylor 814 is a 200 watt general purpose triode that has a mu of 12 with full ratings to 20 MHz. A Taylor 822 is the same tube with a mu of 30. This tube is not based on the RCA 814.


Length = 9.50" Diameter = 2.50"
Max voltage = 2500
Max current = 300 ma
Fil voltage = 10
Fil current = 4 amps         GOTO INDEX
