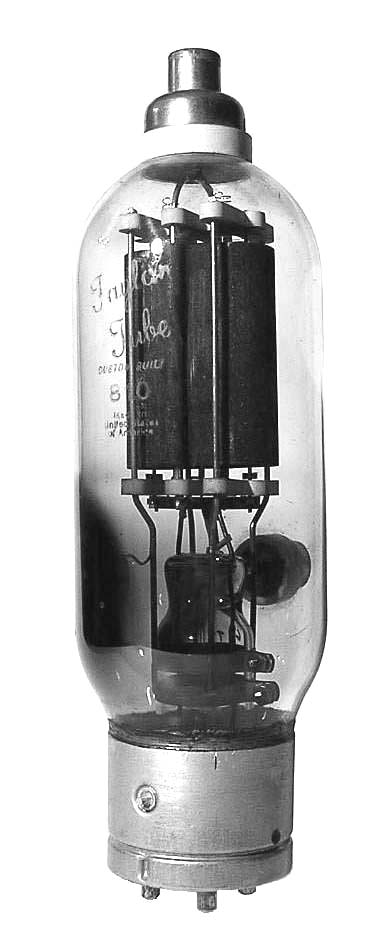

TAYLOR 810

The TAYLOR 810 is a 125 watt general purpose triode that has a mu of 36. It is similar to the RCA 810, but has different specifications.


Length = 8.37" Diameter = 2.37"
Max voltage = 2250
Max current = 275 ma
Fil voltage = 10
Fil current = 4.5 amps         GOTO INDEX
