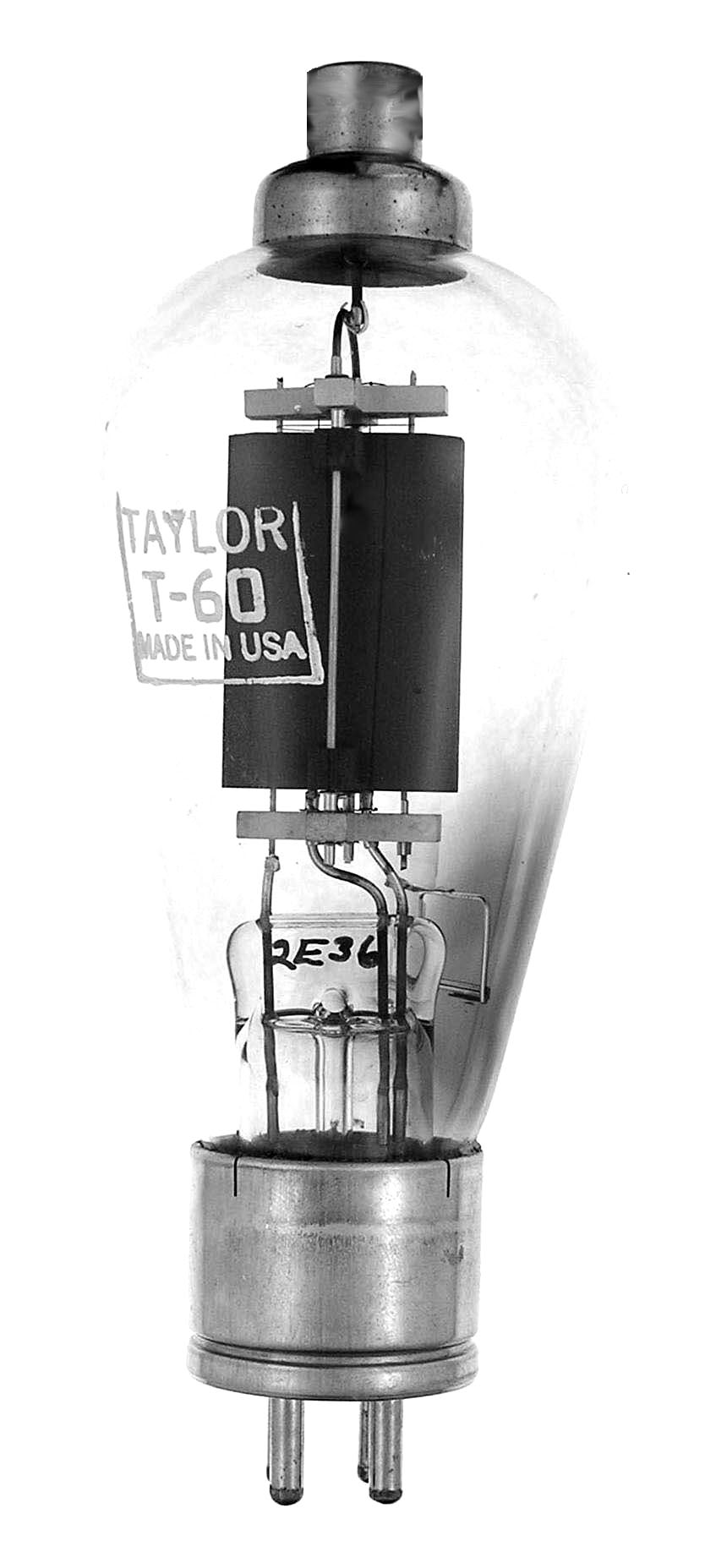

T-60

The T-60 is a 60 watt general purpose triode that has a mu of 15.5 made by Taylor Tubes. Designed fo diathermy operation and interchangable with the HF-60.


Length = 6.50" Diameter = 2.50"
Max voltage = 1500
Max current = 150 ma
Fil voltage = 10
Fil current = 3 amps         GOTO INDEX
