T-40

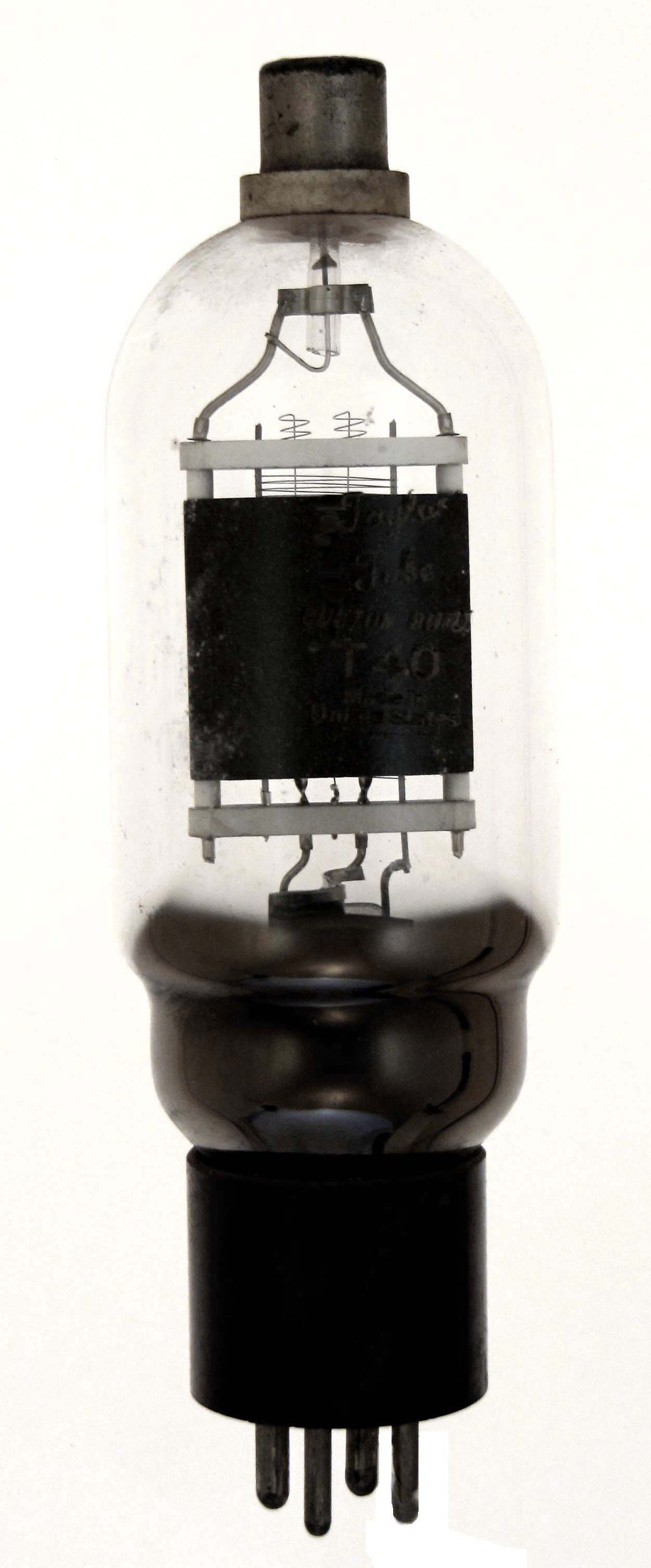

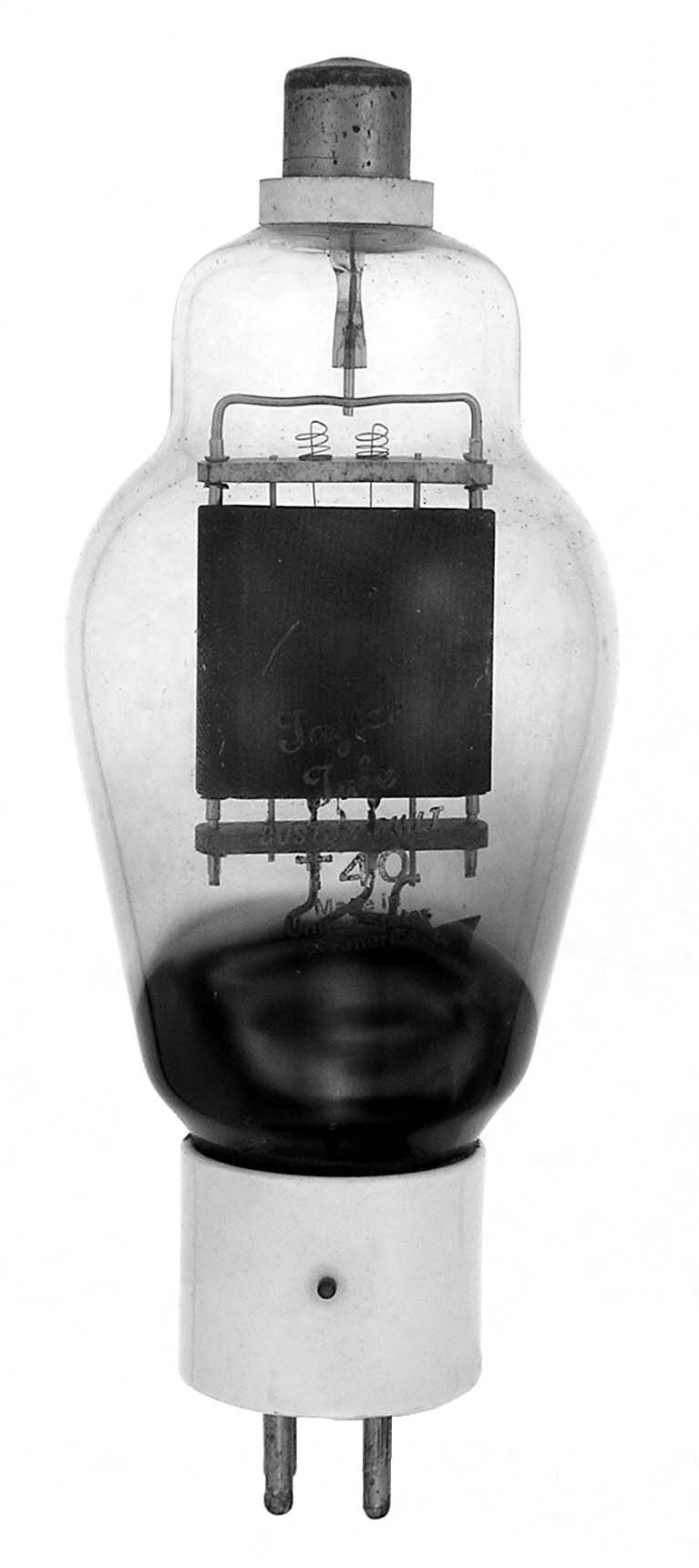

The T-40 is a triode with a mu of 25 and was recommended for Class C applications up to 60 MHz. Made by Taylor, they had different envelope shapes and combinations of anode cap insulators and base materials.


Length = 6.12" Diameter = 2.00"
Max voltage = 1000
Max current = 115 ma
Fil voltage = 7.5
Fil current = 2.5 amps         GOTO INDEX
