S1/3i II

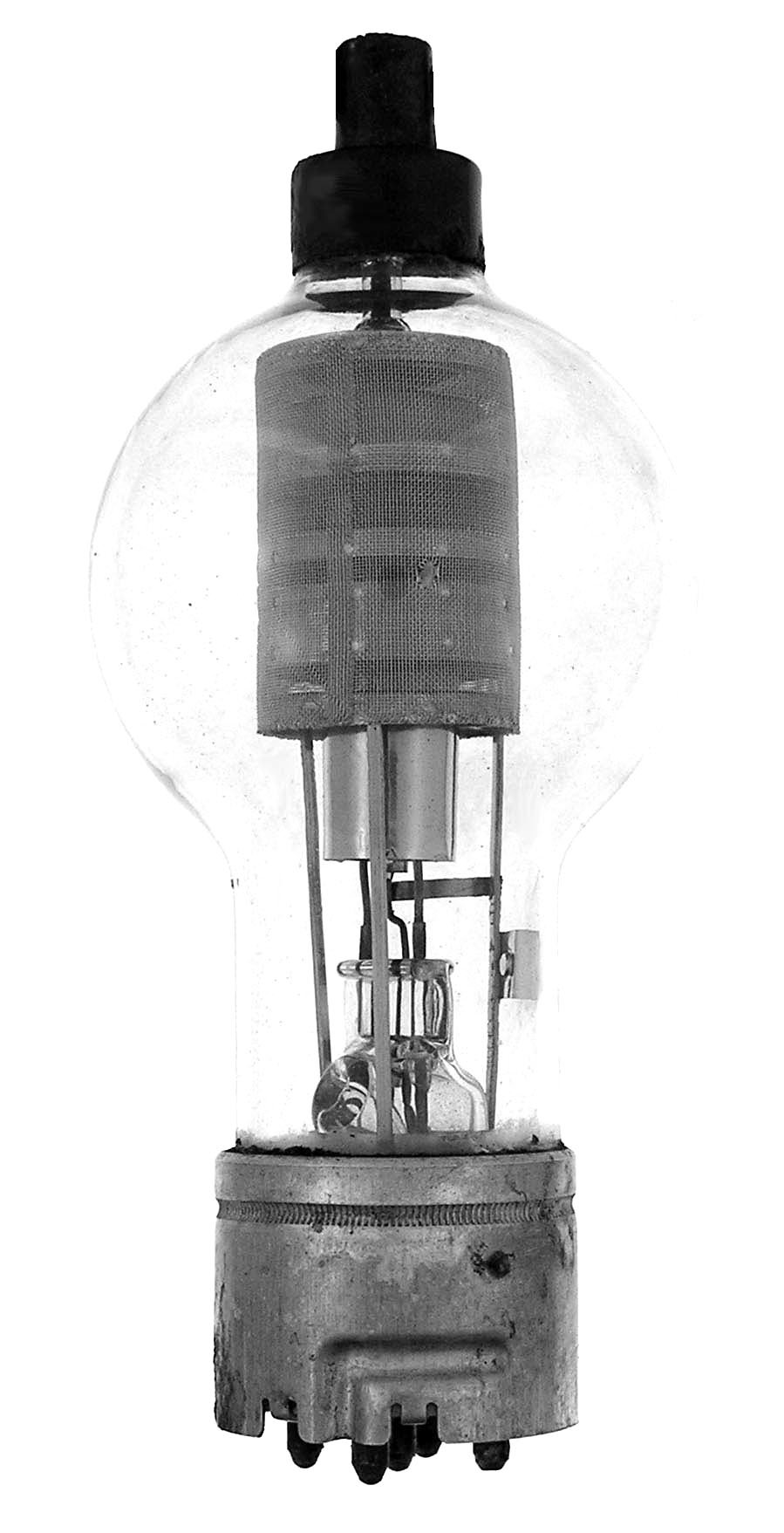

The S1/3i II is a triode helium thyratron made by the German company AEG for use as a pulse modulator for the FuG 200 Hohentwiel airborne RADAR.

Length = 7.25" Diameter = 2.87"
Max voltage = 1000 volts pulse
Max current = 500 amps pulse
Fil voltage = 8
