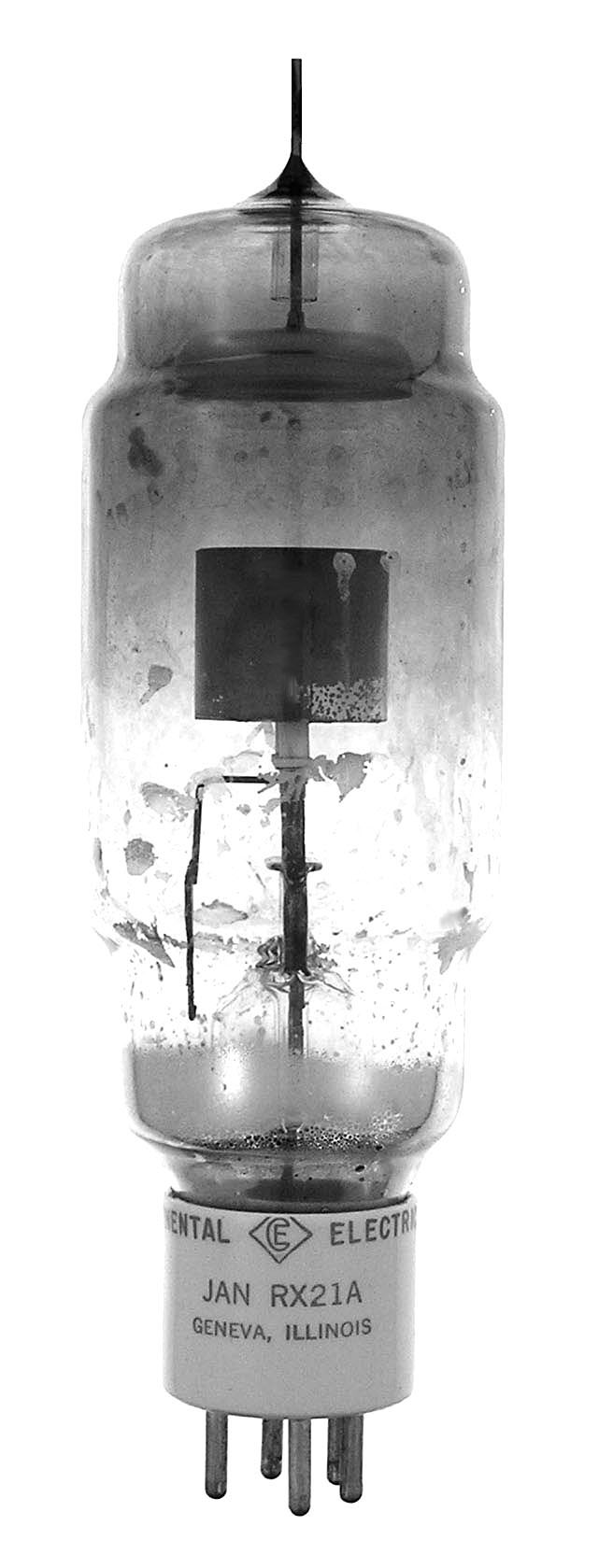

The RX21A is a high voltage rectifier. It is a stepped envelope version of the old RX21. Length = 8.00" Diameter = 2.25" Max voltage = 11000 piv Max current = 750 ma average Fil voltage = 2.5 Fil current = 10 amps GOTO INDEX
The RX21A is a high voltage rectifier. It is a stepped envelope version of the old RX21.
