RV2P800

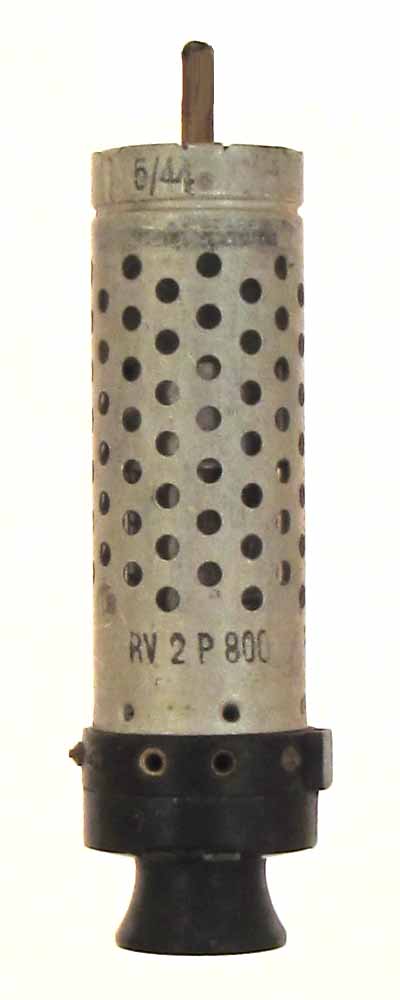

The RV2P800 is a 1.5 watt, general purpose pentode. This example was made by Telefunken and was used in battery powered German military equipment in WWII.

Length = 4.25" Diameter = 1.13"
Max voltage = 200
Max current = 7 ma
Fil voltage = 1.9
