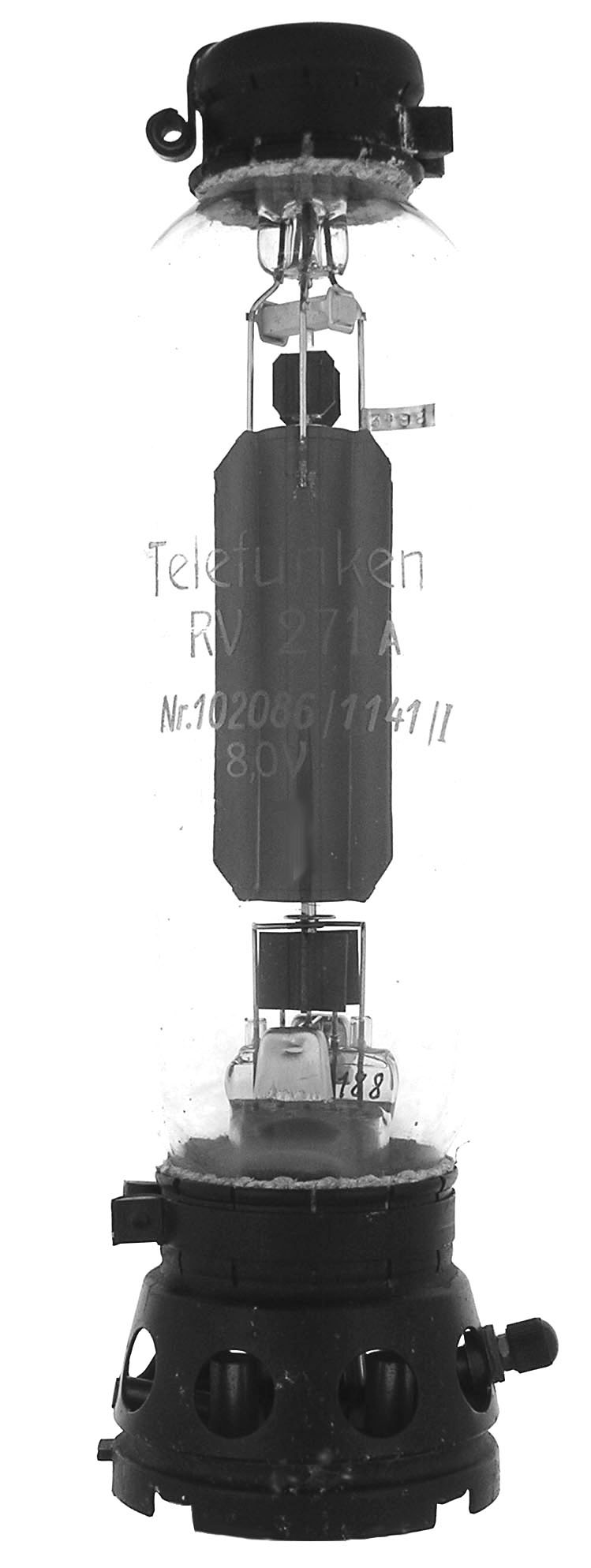

RV271A

The RV271A is a 150 watt triode made by Telefunken for the German military in WWII.

Length = 9.75" Diameter = 2.50"
Max voltage = 1500
Max current = 100 ma
Fil voltage = 8
Fil current = 1.5 amps         GOTO INDEX
