RS69g

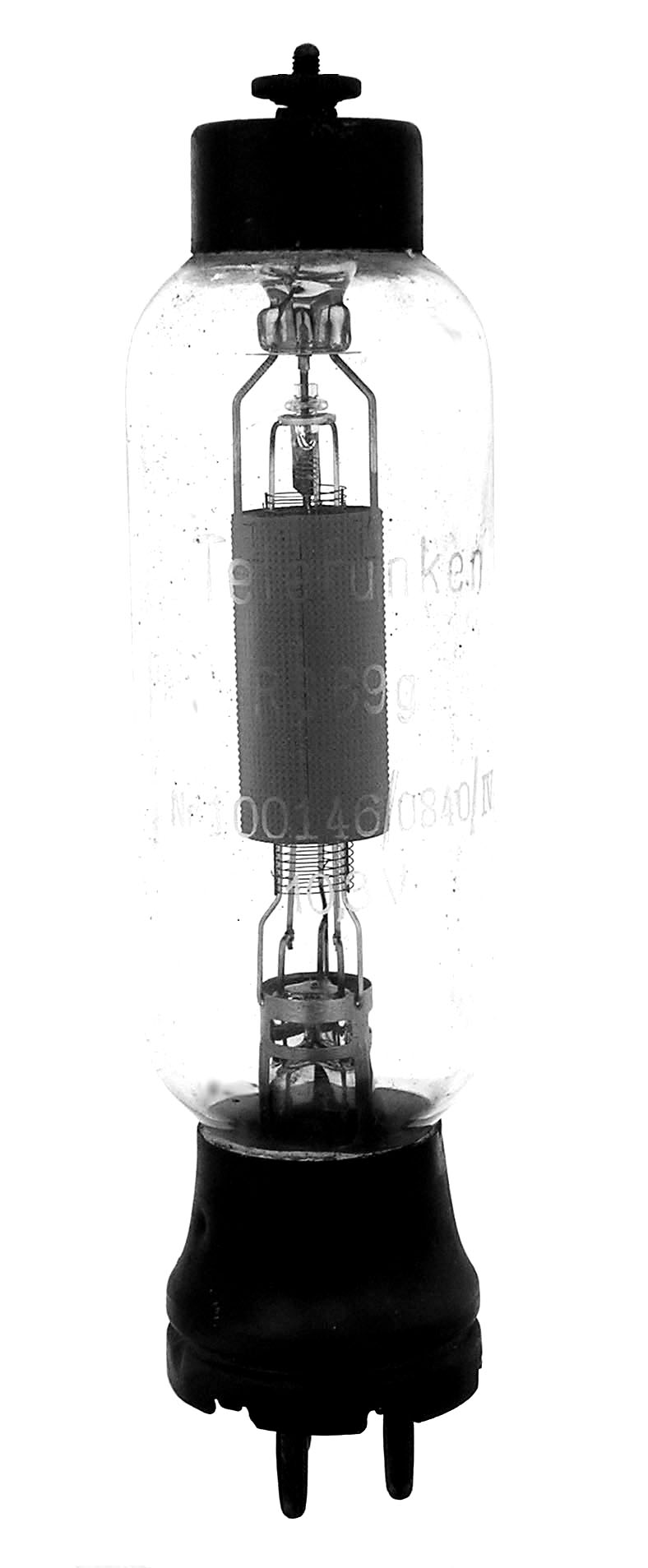

The RS69g is a 25 watt triode with a mu of 33 made by Telefunken. This example was made for the Kriegsmarine.

Length = 8.13" Diameter = 1.87"
Max voltage = 1000
Max current = 45 ma
Fil voltage = 10.3
Fil current = 2.75 amps         GOTO INDEX
