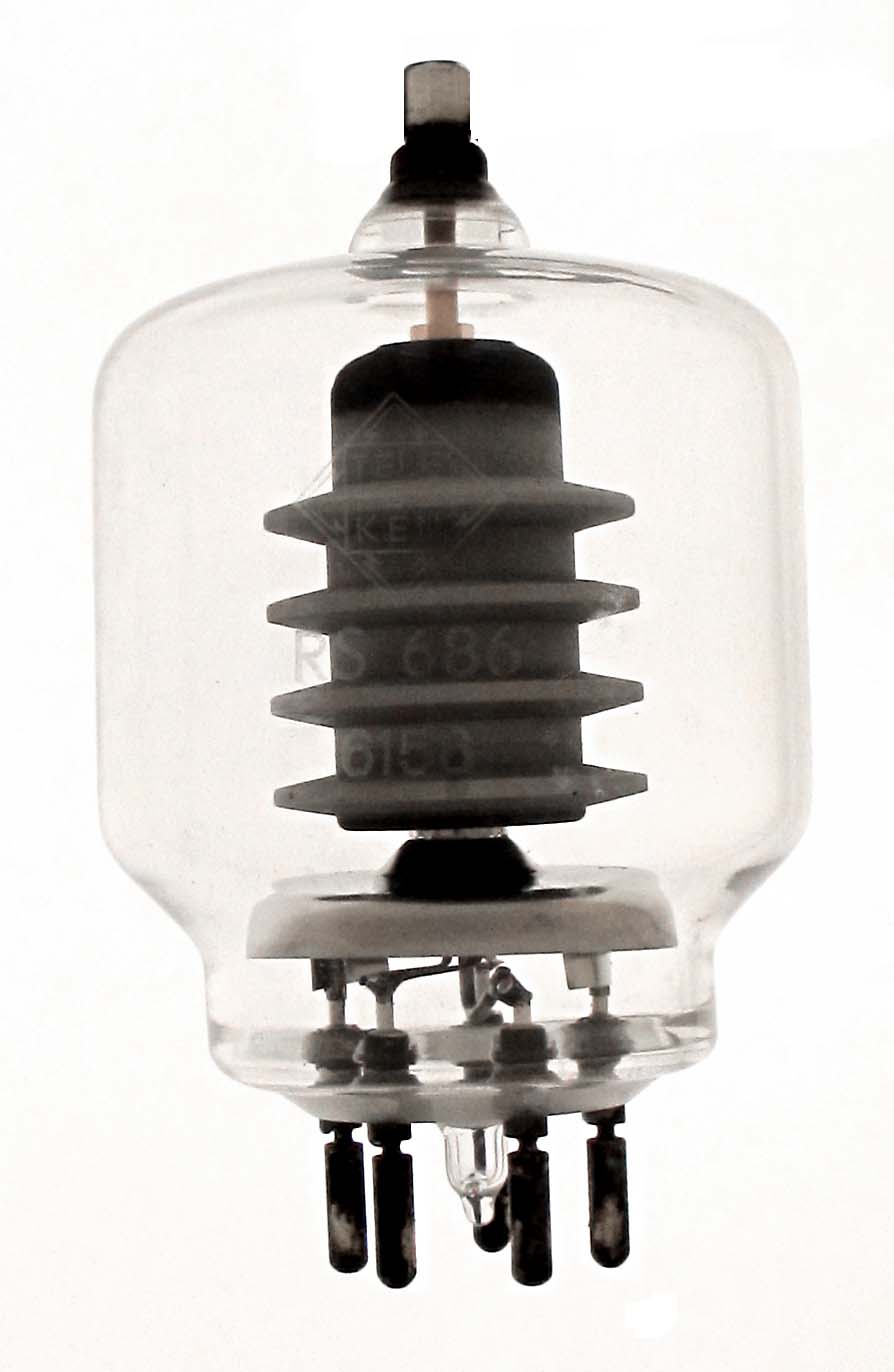

RS686

The RS686 is a 400 watt tetrode with full output to 75 MHz. Made by Telefunken. Similar to the 4-400A.

Length = 5.75" Diameter = 3.38"
Max voltage = 4000
Max current = 350 ma
Fil voltage = 5
Fil current = 14.5 amps         GOTO INDEX
