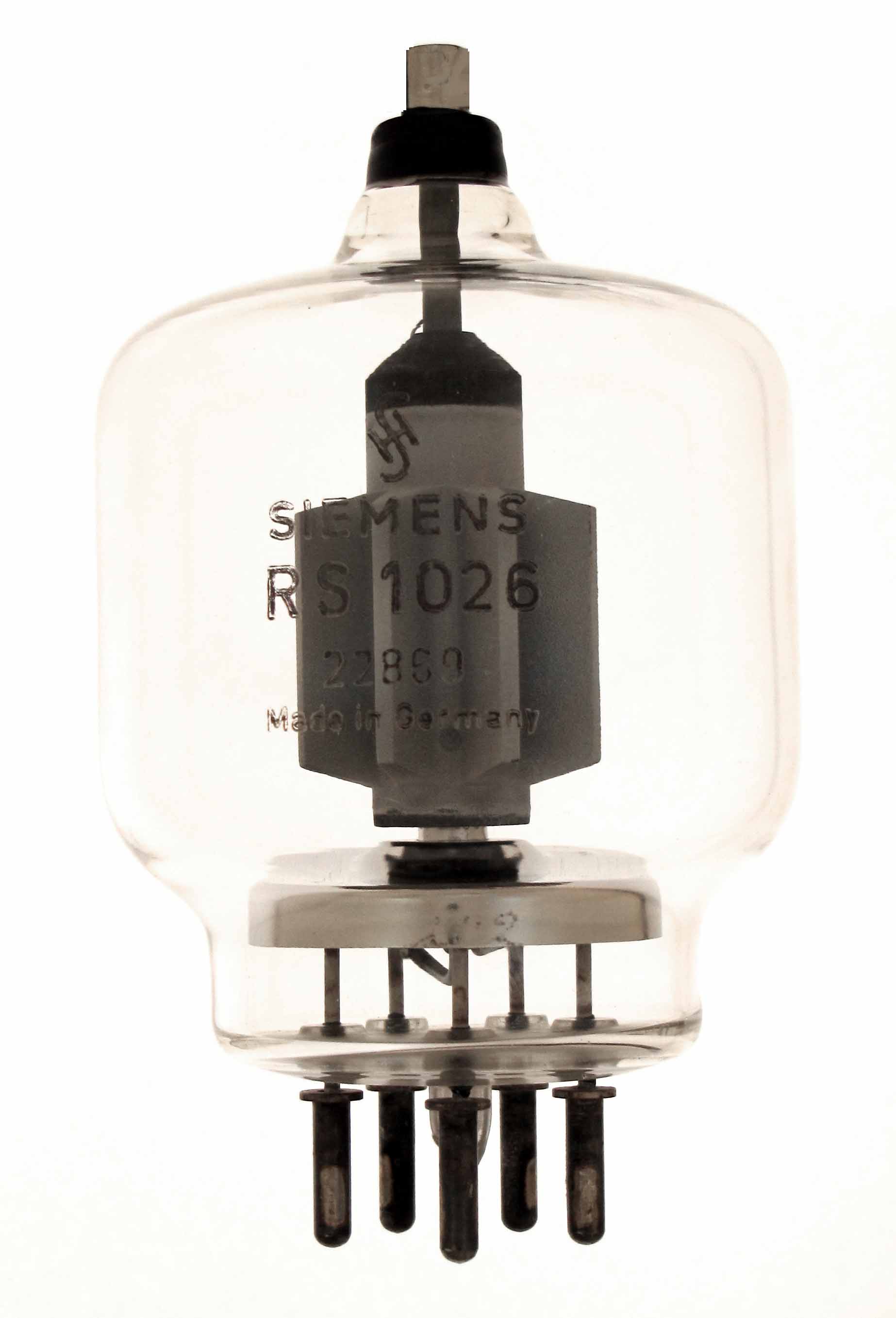

RS1026

The RS1026 is a 350 watt triode with a mu of 25 and a frequency of 50 MHz for full output. Intended for use in industrial heating and general RF/AF use. The RS1026 is made by Siemens in Germany and is equivalent to the 5867A.

Length = 5.89" Diameter = 3.44"
Max voltage = 4000
Max current = 400 ma
Fil voltage = 5
Fil current = 14.5 amps         GOTO INDEX
