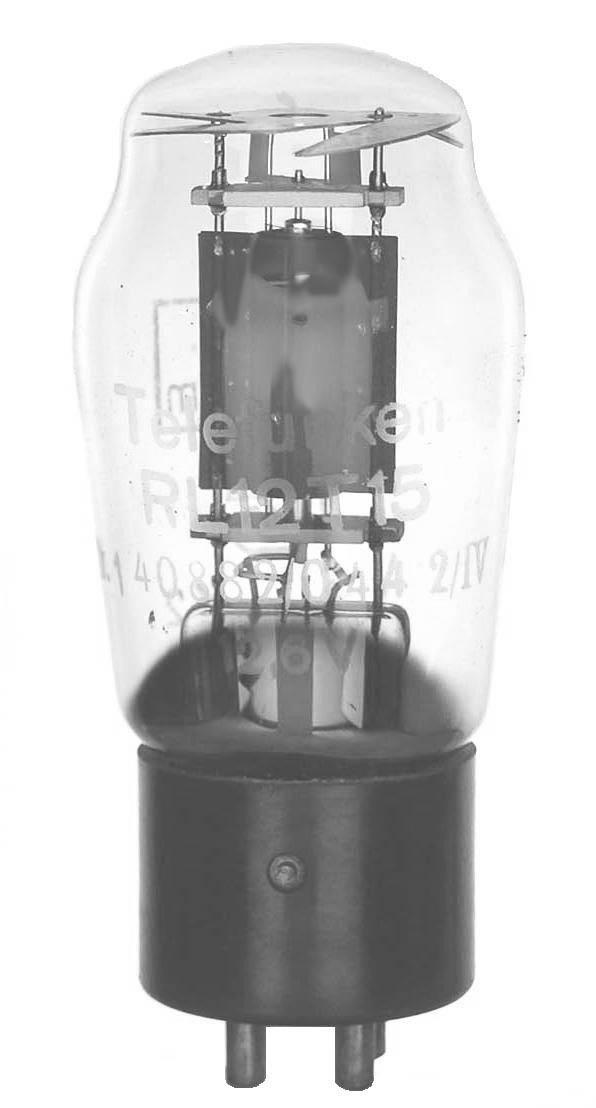

RL12T15

The RL12T15 is a 15 watt dissipation triode. Made in WWII for the German Army.

Length = 4.00" Diameter = 1.37"
Max voltage = 500
Max current = 100 ma
Fil voltage = 12.6
Fil current = .55 amps         GOTO INDEX
