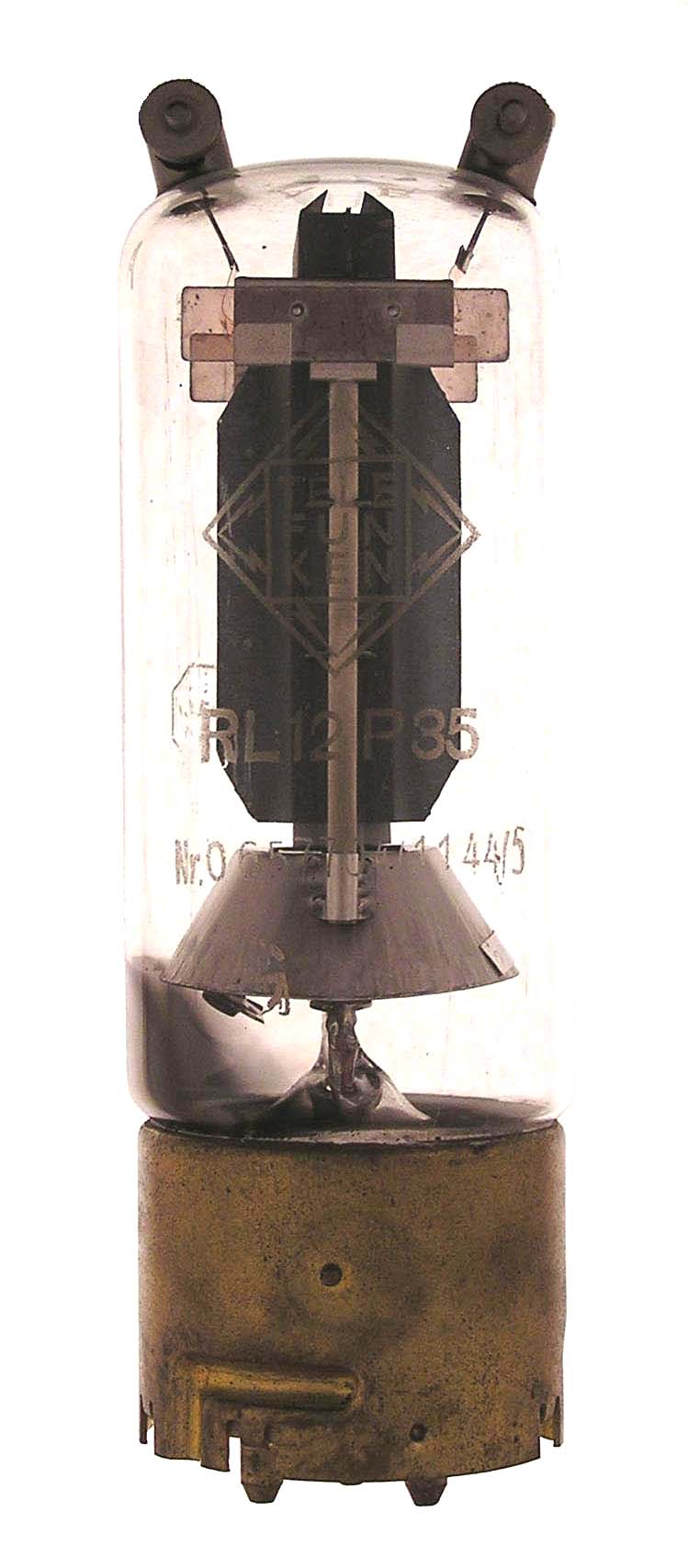

RL12P35

The RL12P35 is a 35 watt dissipation pentode. Made in WWII for the German Army.

Length = 6.00" Diameter = 1.87"
Max voltage = 800
Max current = 150 ma
Fil voltage = 12.6
Fil current = .63 amps         GOTO INDEX
