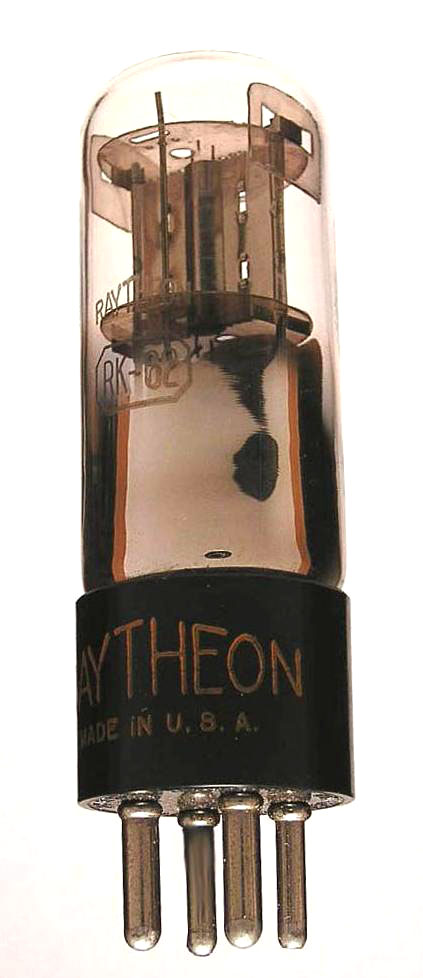

RK-62

The RK-62 is a gas triode detector thyratron. It was designed to be a sensitive detector and relay tube for remote control applications circa 1939.

Length = 3.87" Diameter = 1.03"
Max voltage = 45
Max current = 1.5 ma
Fil voltage = 1.4
Fil current = .05 amps         GOTO INDEX
