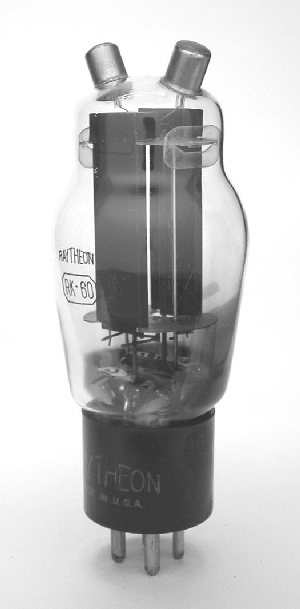

RK-60

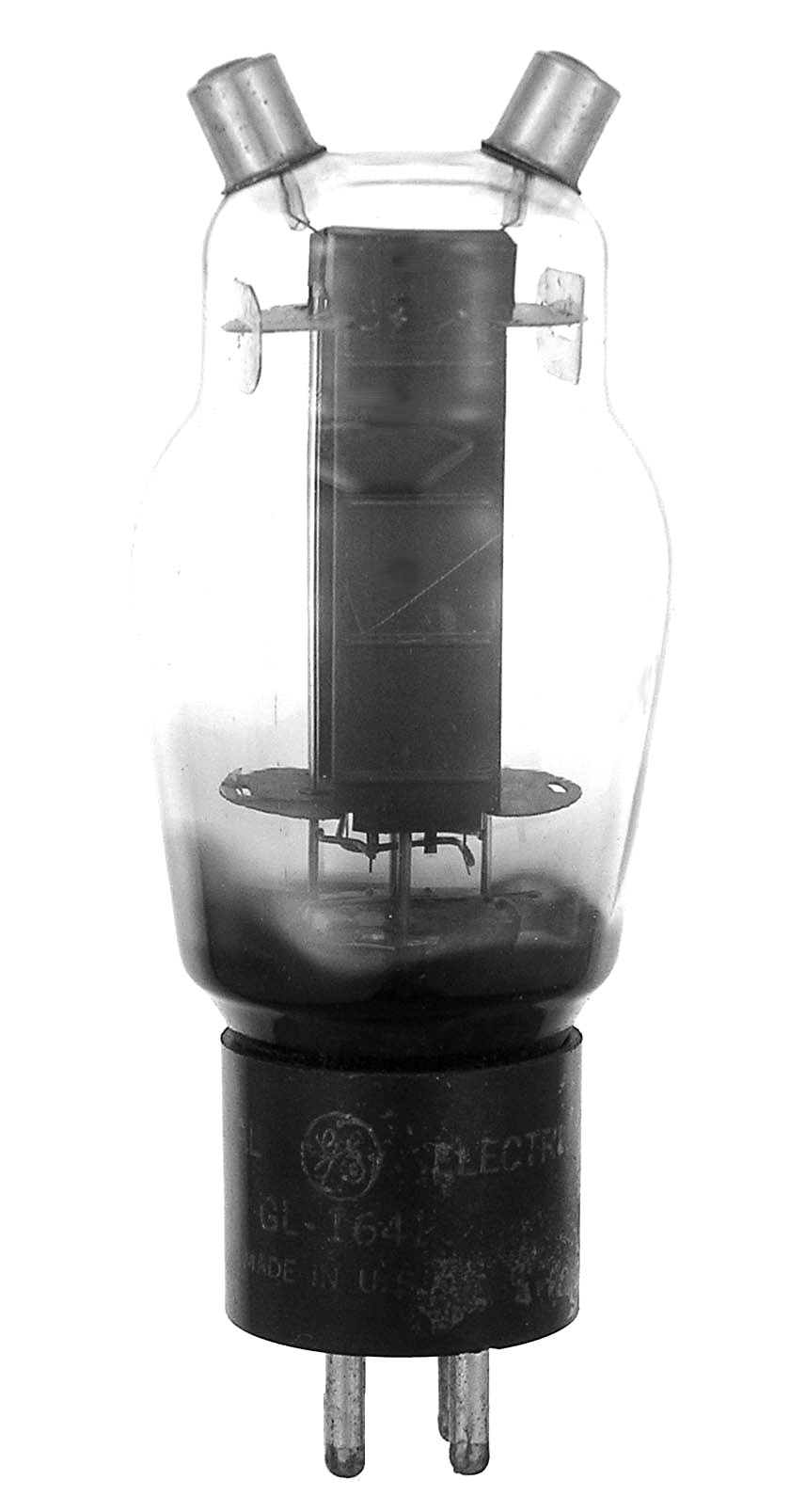

The RK-60 is a full wave rectifier. The designation (GL)1641 was also given to this tube as shown in the second example made by GE.

Length = 5.25" Diameter = 1.87"
Max voltage = 2120 PIV
Max current = 250 ma
Fil voltage = 5
Fil current = 3 amps         GOTO INDEX
