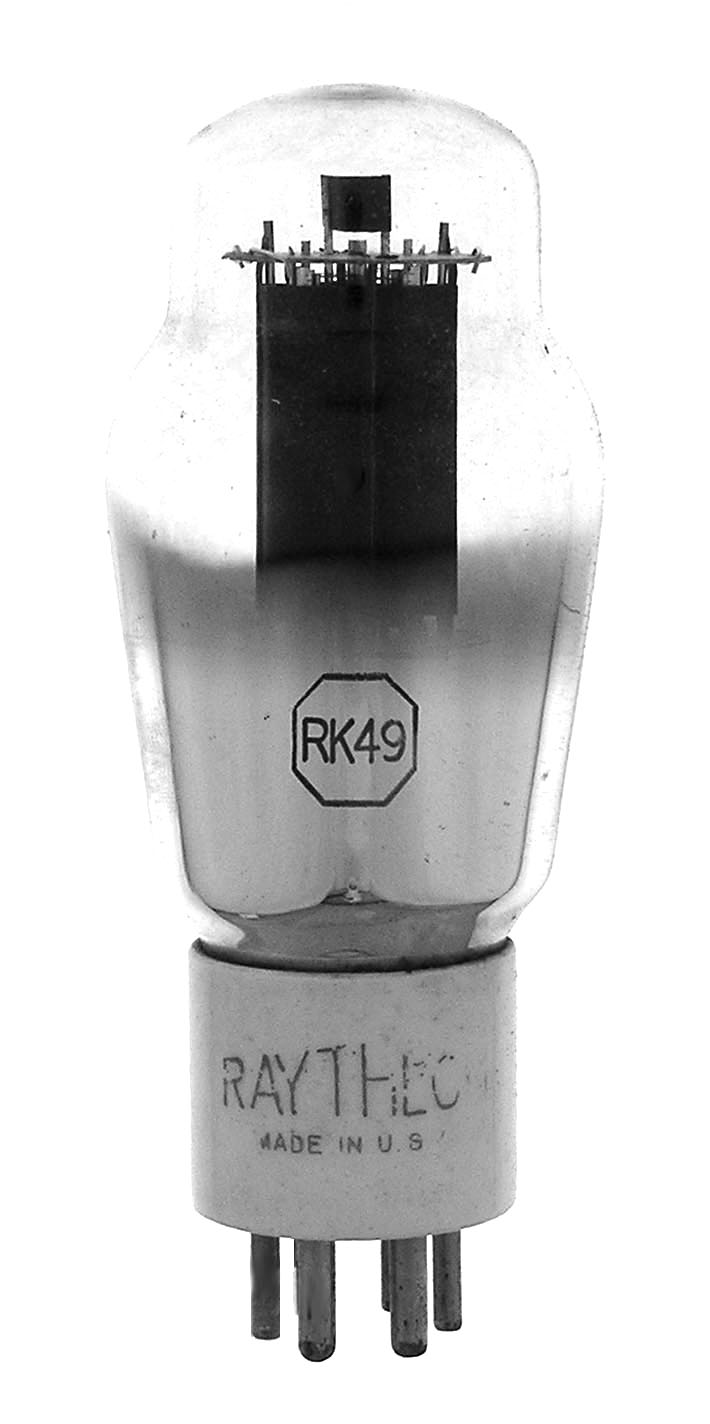

RK-49

The RK-49 is a 21 watt beam tetrode made by Raytheon with full ratings to 15 MHz and usable to 60. This tube is electrically similar to the 6L6G and the T21.

Length = 5.00" Diameter = 1.87"
Max voltage = 400
Max current = 100 ma
Fil voltage = 6.3
Fil current = .9 amps         GOTO INDEX
