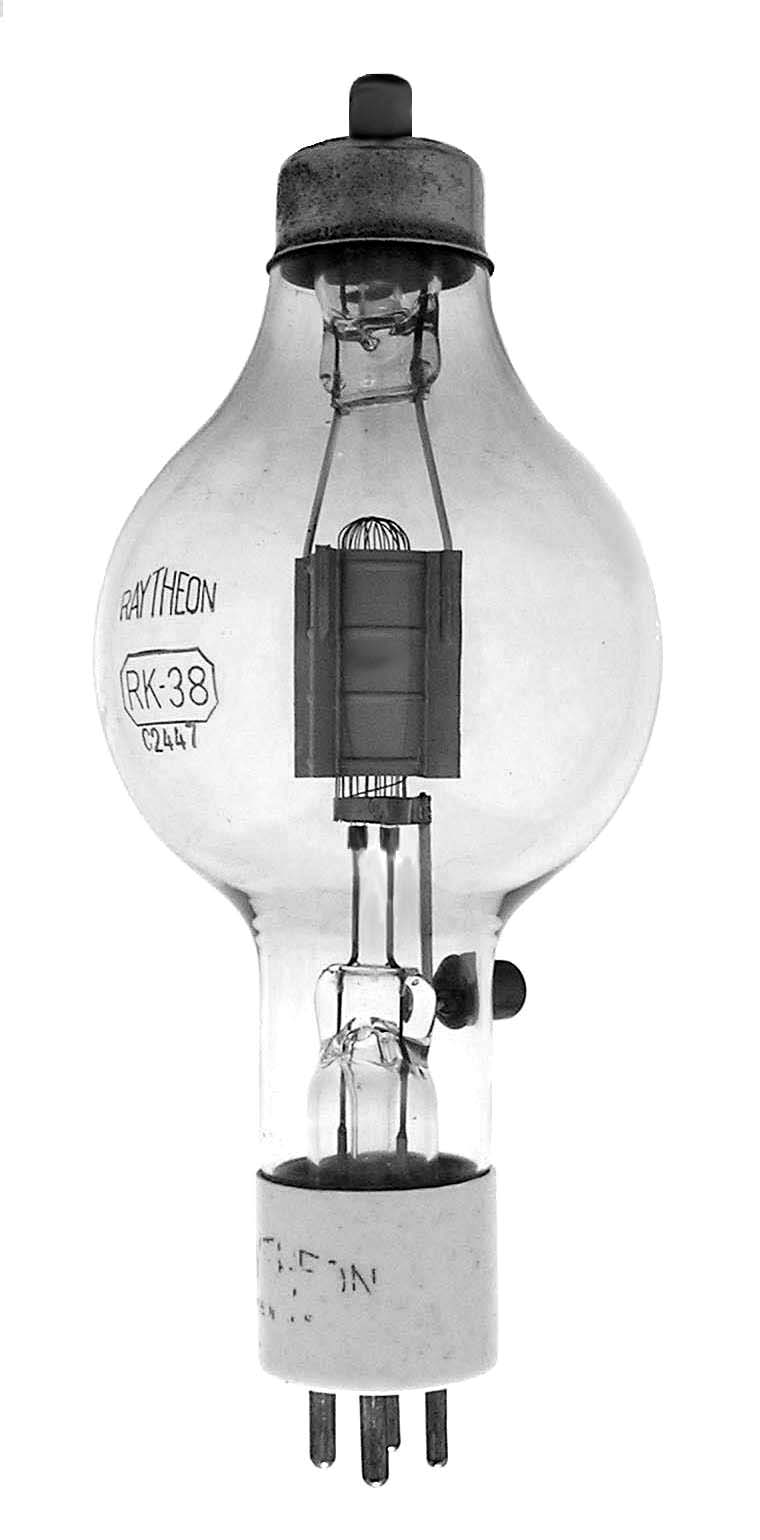

RK-38

The RK-38 is a 100 watt dissipation triode with a mu of 14. Full ratings to 60 MHz made by Raytheon.

Length = 7.25" Diameter = 2.82"
Max voltage = 3000
Max current = 165 ma
Fil voltage = 5
Fil current = 8 amps         GOTO INDEX
