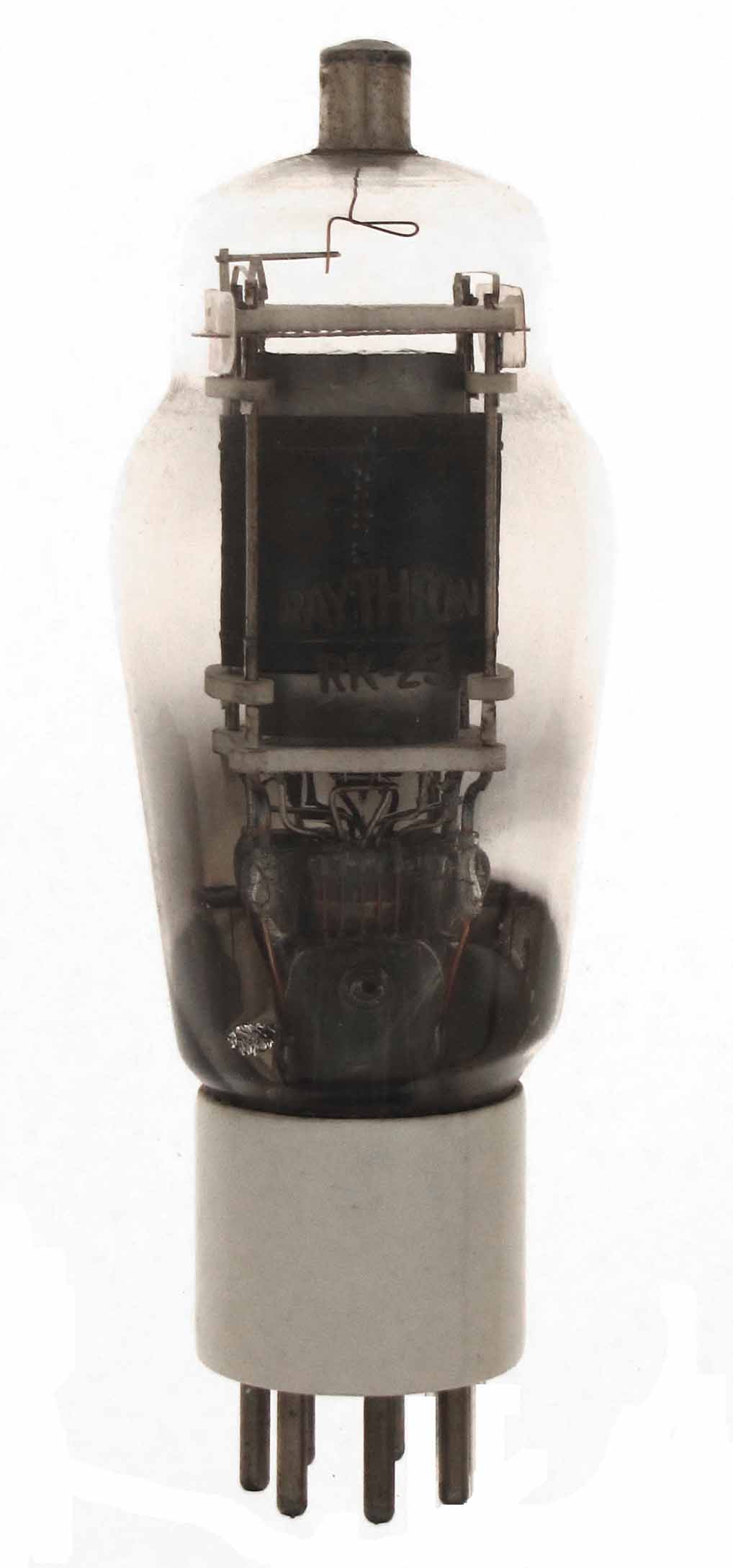

RK-23

The RK-23 is a 10 watt pentode with a maximum frequency of 30 MHz for full ratings made by Raytheon. The RK-25 is the same tube with a 6.3 volt heater.

Length = 5.75" Diameter = 2.06"
Max voltage = 500
Max current = 60 ma
Fil voltage = 2.5
Fil current = 2 amps         GOTO INDEX
