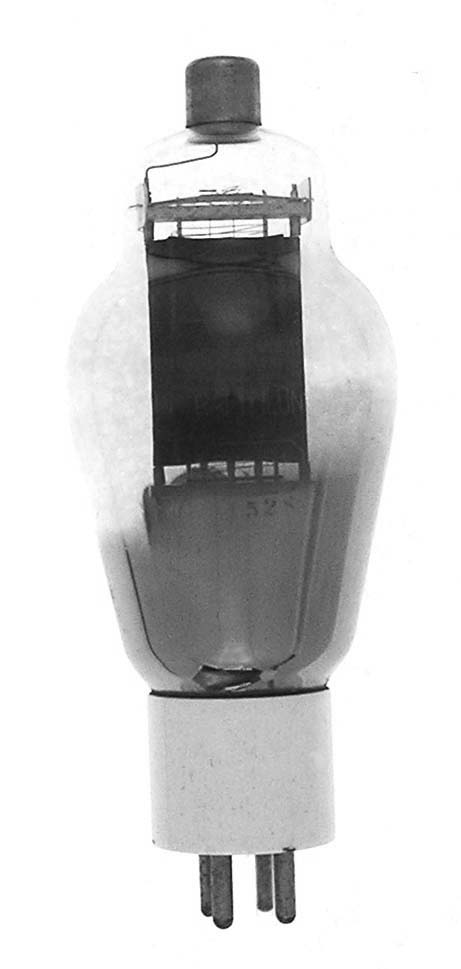

RK-11

The RK-11 is a 25 watt dissipation triode with a mu of 20 and full ratings to 60 MHz made by Raytheon. A high mu version of this tube is the RK-12.

Length = 6.25" Diameter = 2.25"
Max voltage = 750
Max current = 105 ma
Fil voltage = 6.3
Fil current = 3 amp         GOTO INDEX
