RK-10

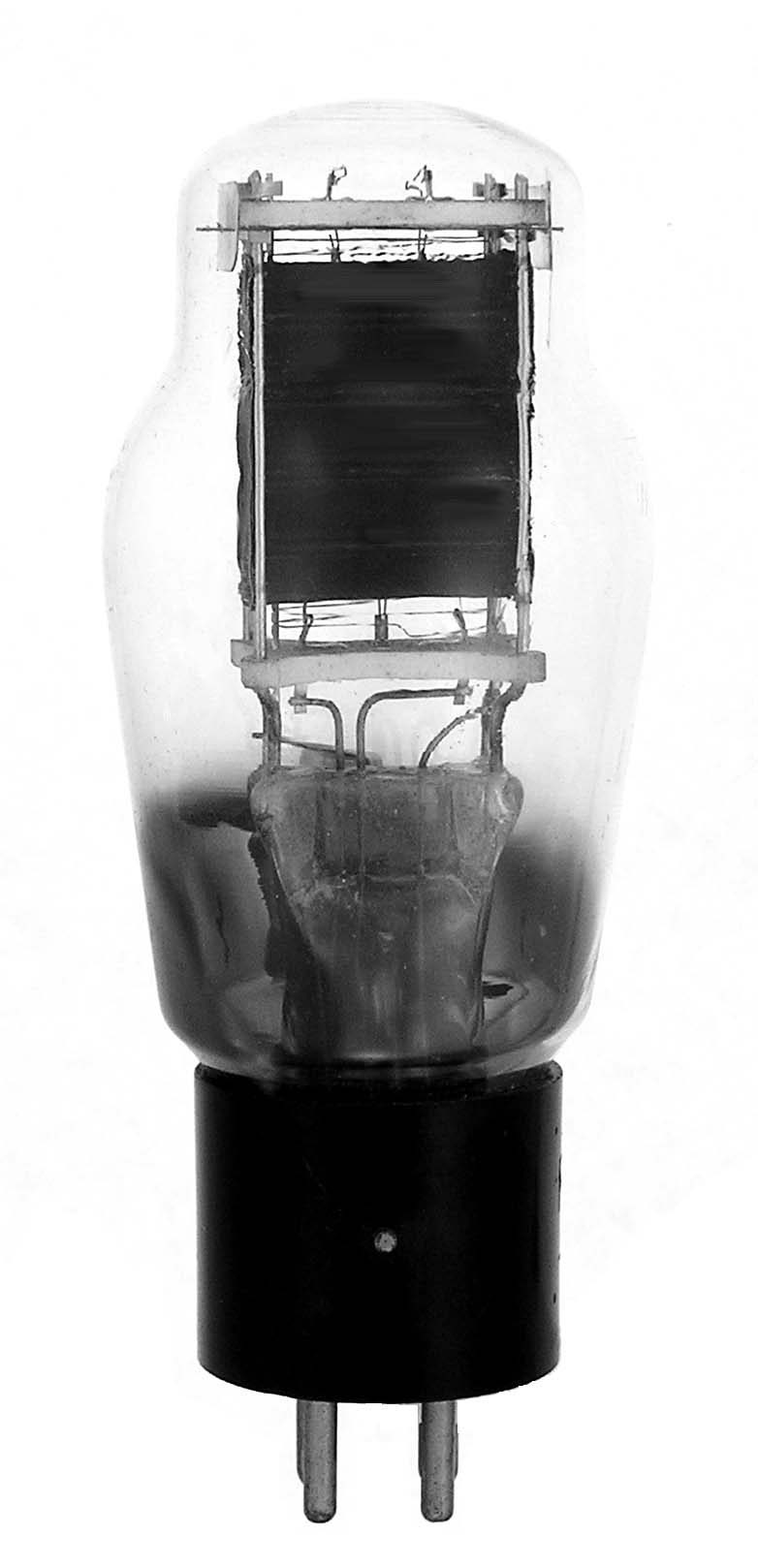

The RK-10 is a 15 watt triode with a mu of 8 made by Raytheon. It is usable up to 60 MHz with full ratings. This is a transmitting version of the RCA developed UX-210/C310 or 10.

Length = 5.00" Diameter = 2.00"
Max voltage = 450
Max current = 65 ma
Fil voltage = 7.5
Fil current = 1.25 amps         GOTO INDEX
