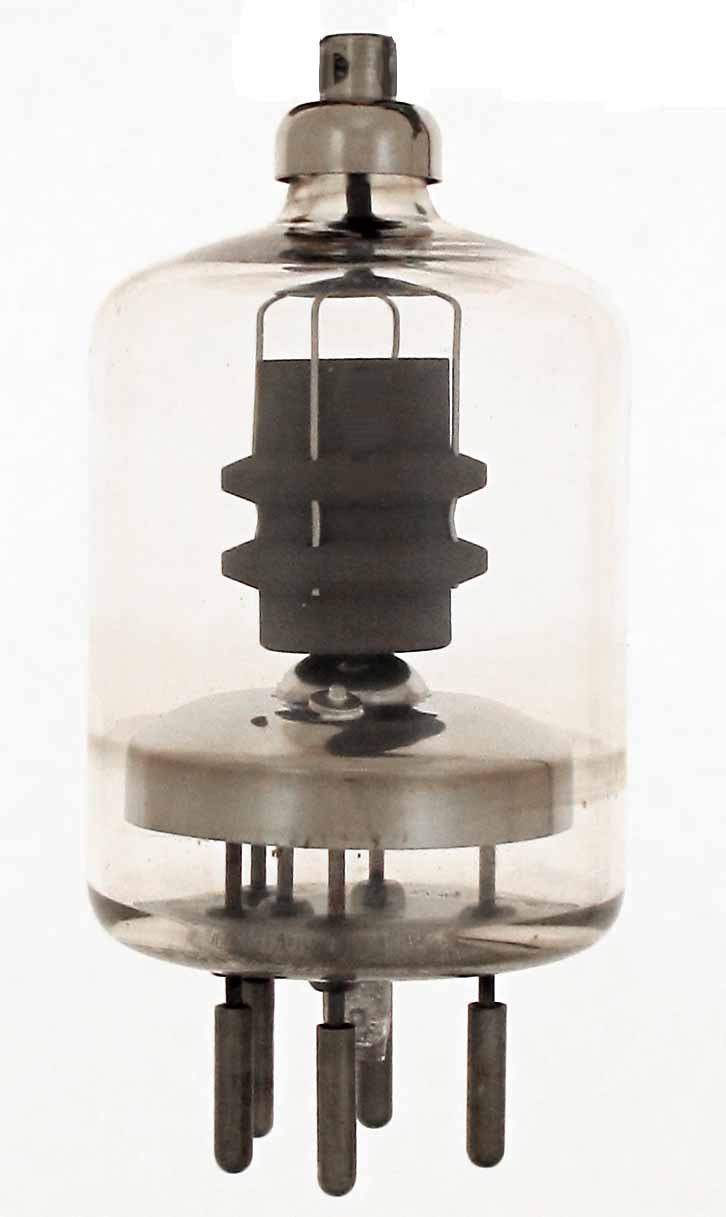

RE125C

The RE125C or RE125C/4-125A is a 125 watt dissipation tetrode. The usable frequency for maximum ratings is 120 MHz. Electrically similar to the EIMAC 4-125A but a different envelope. Made by Tesla.

Length = 5.37" Diameter = 2.56"
Max voltage = 3000
Max current = 250 ma
Fil voltage = 5
Fil current = 7.2 amps         GOTO INDEX
