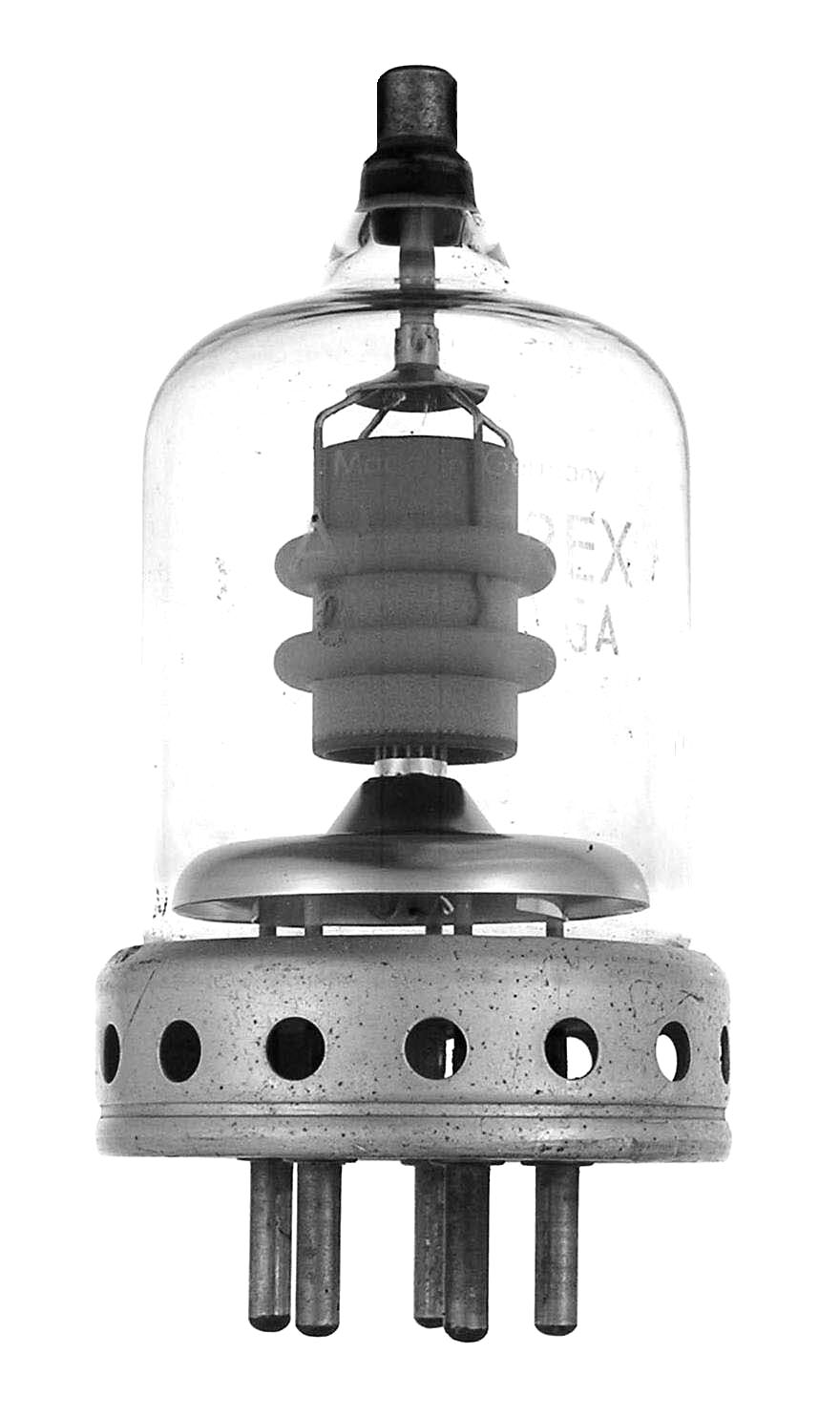

The QB3/300GA is a 125 watt dissipation tetrode. The usable frequency for maximum ratings is 120 MHz. Similar to the 4-125A. Length = 5.38" Diameter = 2.50" Max voltage = 3000 Max current = 225 ma Fil voltage = 5 Fil current = 6.5 amps GOTO INDEX
