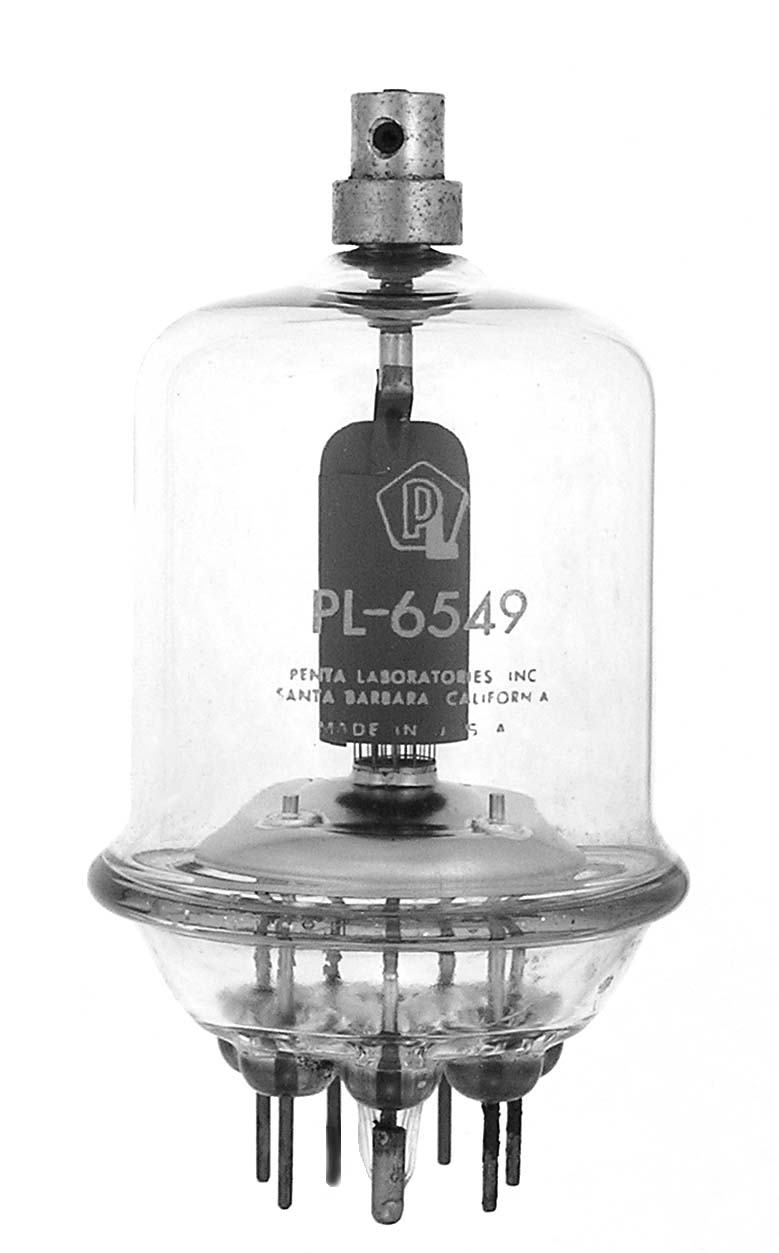

PL-6549

The PL-6549 is a 75 watt tetrode with full ratings to 175 MHz made by Penta Labs. This is a PL-177A with a conventional suppressor grid.

Length = 4.12" Diameter = 2.25"
Max voltage = 2000
Max current = 175 ma
Fil voltage = 6
Fil current = 3.2 amps         GOTO INDEX
