PL-175A

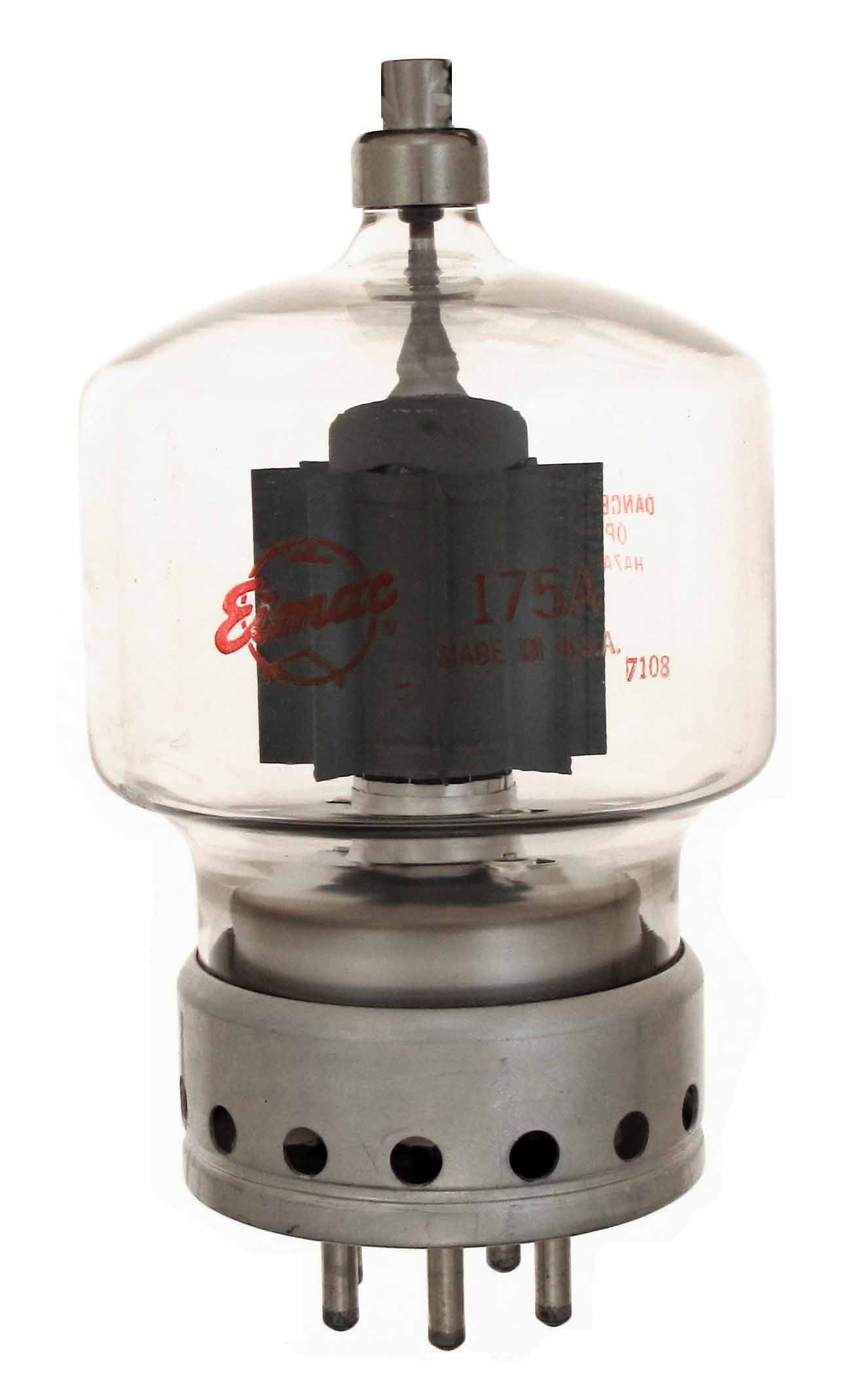

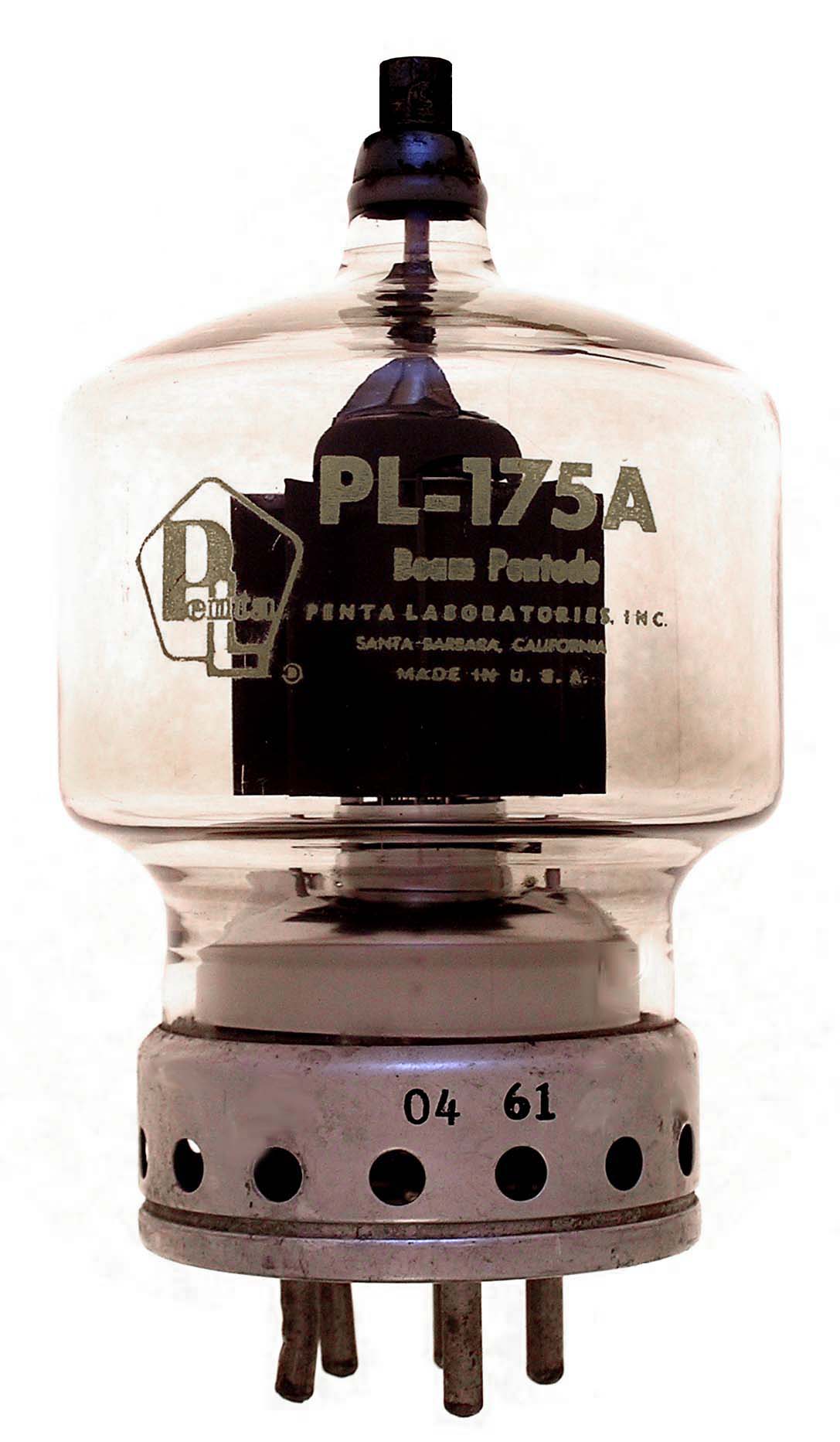

The PL-175A is a 400 watt beam pentode with a maximum frequency of 110 MHz. Originally a Penta Labs product, they were also made by Eimac after their aquisition of Penta as shown in the second example.

Length = 1.33" Diameter = .82"
Max voltage = 4000
Max current = 350 ma
Fil voltage = 5
Fil current = 14.5 amps         GOTO INDEX
