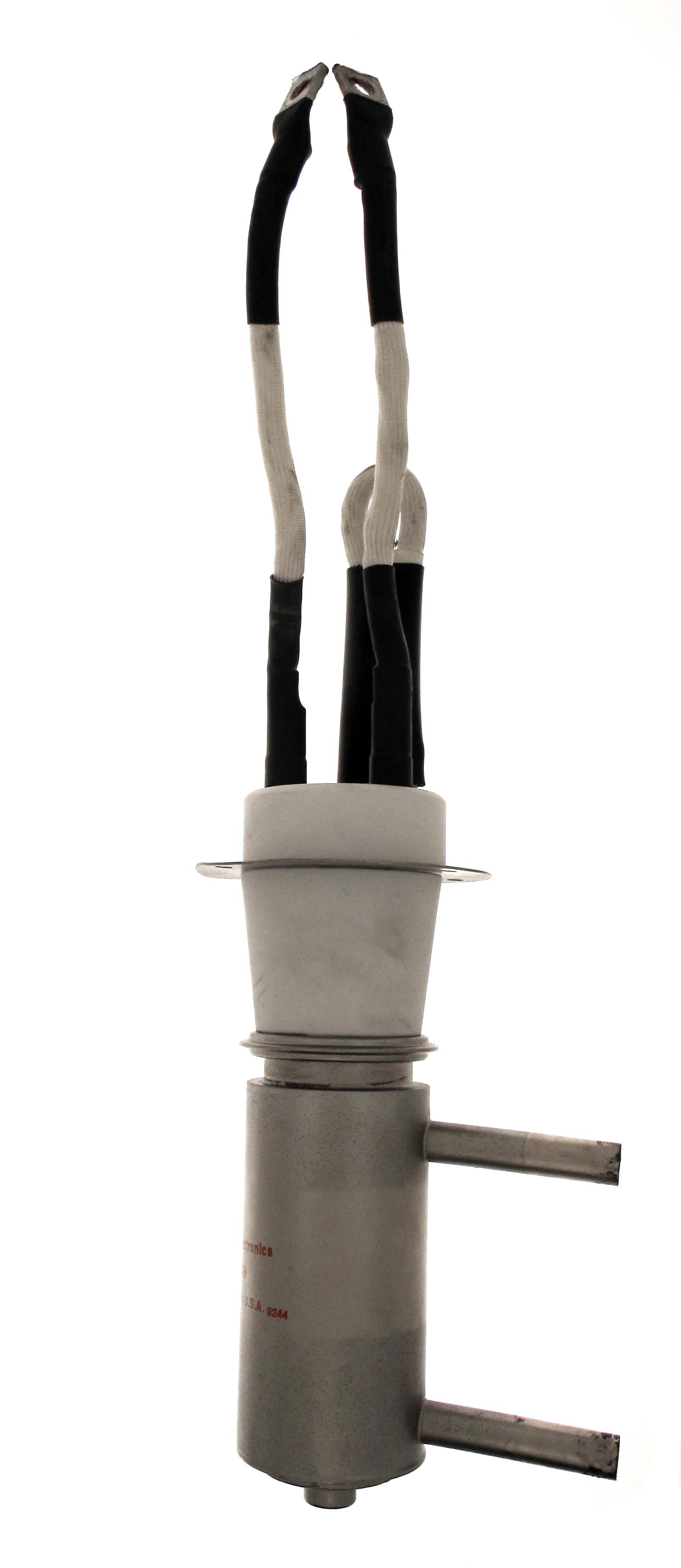

NL-10309

The NL-10309 is a 10,000 watt dissipation, water cooled, triode with a mu of 38 designed for industrial heating by National Electronics. The usable frequency for maximum ratings is 30 MHz.

Length = 8.25" Diameter = 3.00" Not including water lines.
Max voltage = 11,500
Max current = 2 amps
Fil voltage = 12.6
Fil current = 33 amps         GOTO INDEX
