ML-7249

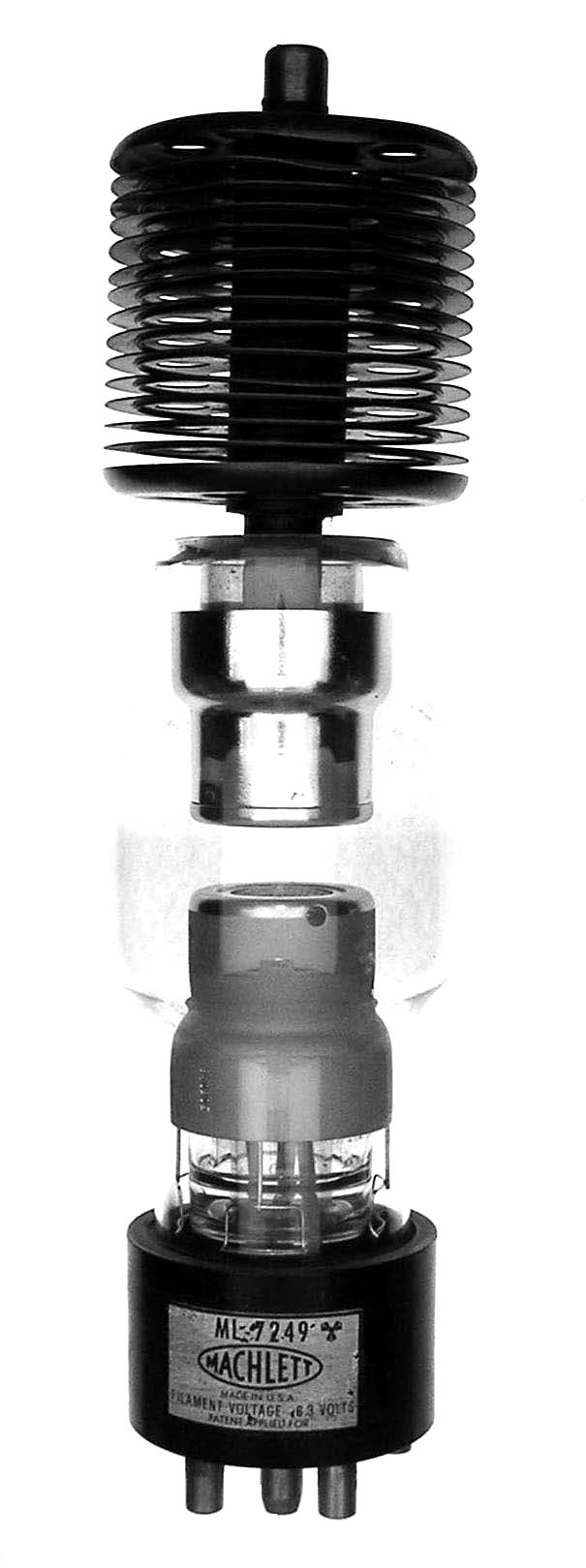

The ML-7249 is a high voltage, oil cooled, tetrode switch tube used as a pulse modulator. It appears to be the same as the ML-7248 with a finned anode. Values are based on the ML-7248.

Length = 14.00" Diameter = 3.25"
Max voltage = 125,000
Max current = 2 amps pulse
Fil voltage = 6.3
Fil current = 11.7 amps         GOTO INDEX
