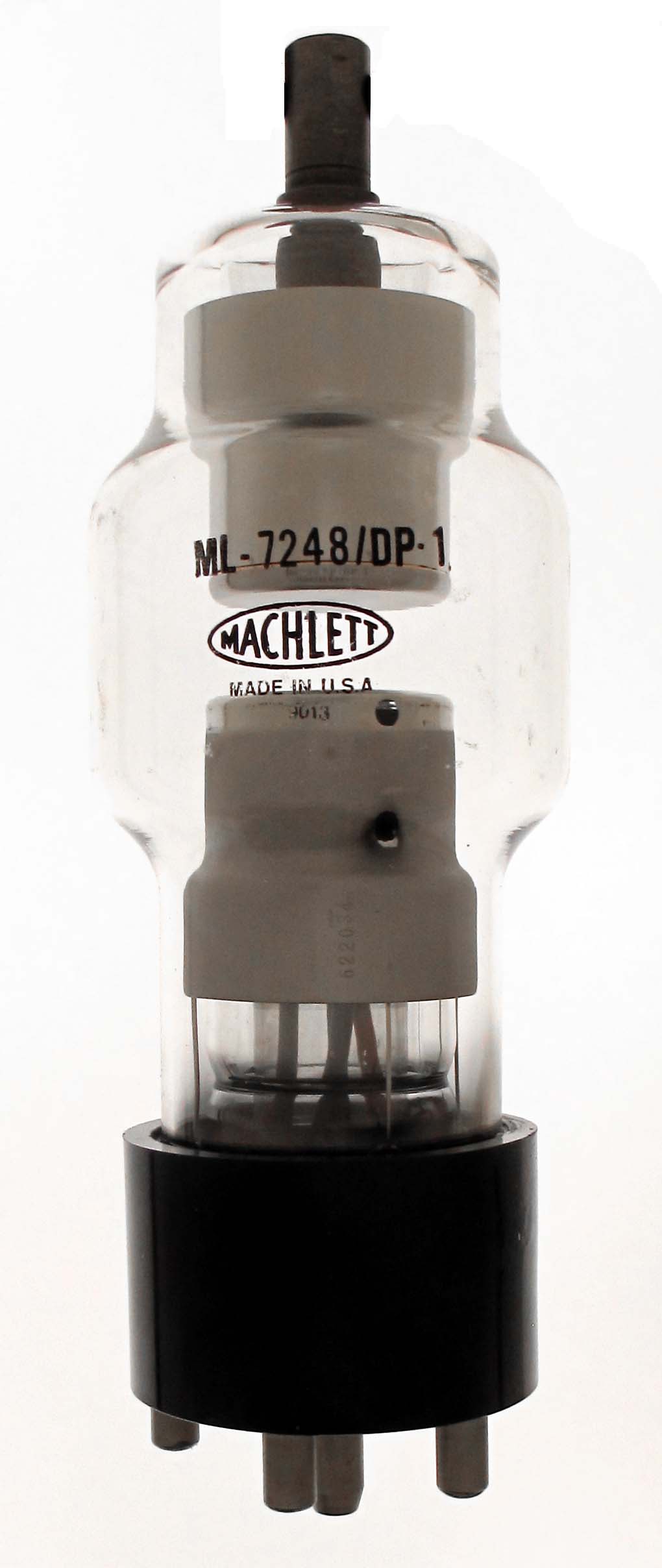

ML-7248

The ML-7248 is a high voltage, oil cooled, tetrode switch tube used as a pulse modulator. It is the same as the ML-7249 that has with a finned anode.

Length = 10.70" Diameter = 3.63"
Max voltage = 125,000
Max current = 2 amps pulse
Fil voltage = 6.3
Fil current = 11.7 amps         GOTO INDEX
