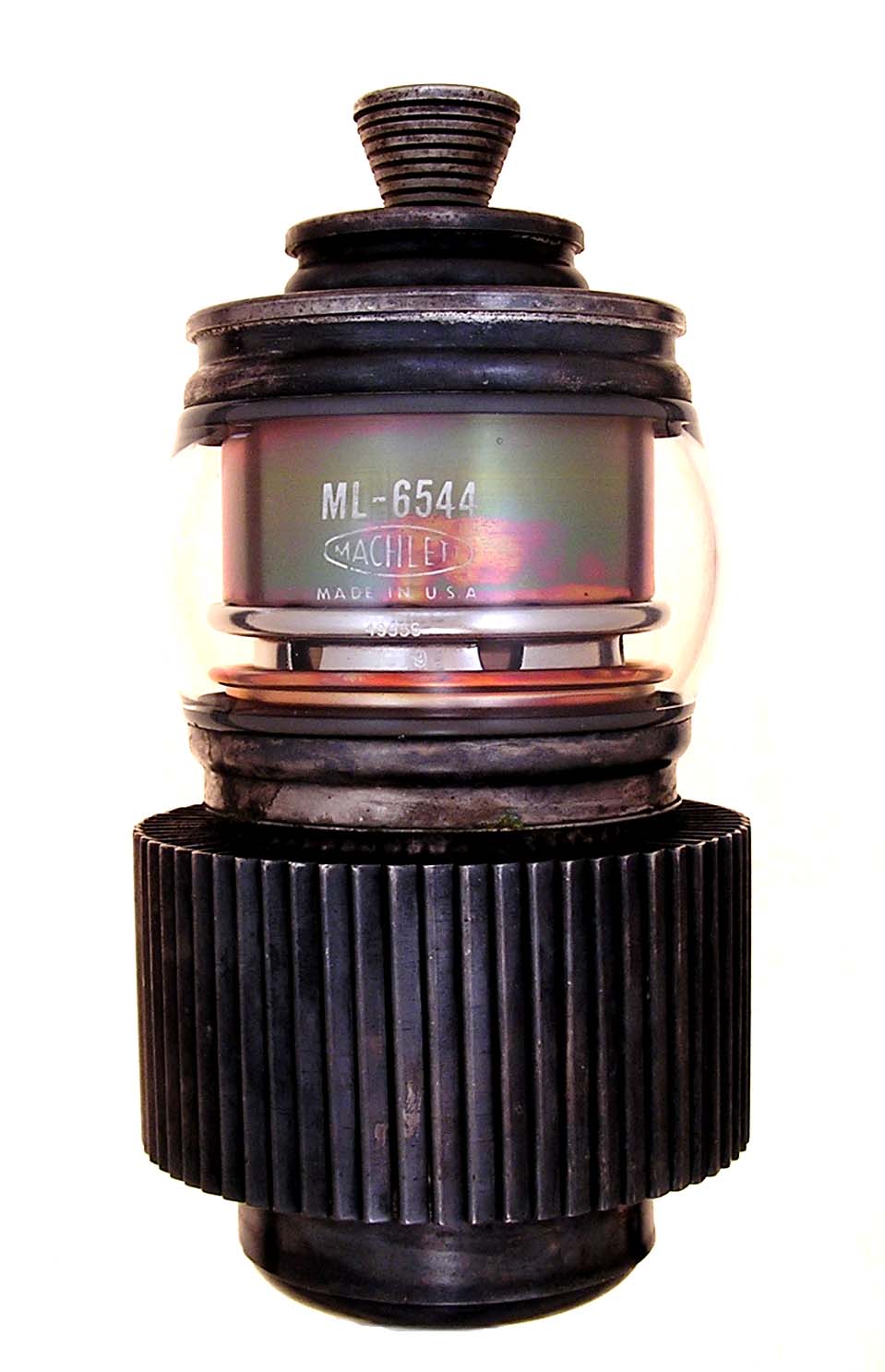

ML-6544

The ML-6544 is a 1000 watt, air cooled, triode with a mu of 90 designed to be a pulse modulator by Machlett. Peak pulse output is 1 megawatt.

Length = 9.38" Diameter = 5.13"
Max voltage = 20000
Max current = .25 amps, 65 amps peak
Fil voltage = 6
Fil current = 60 amps         GOTO INDEX
