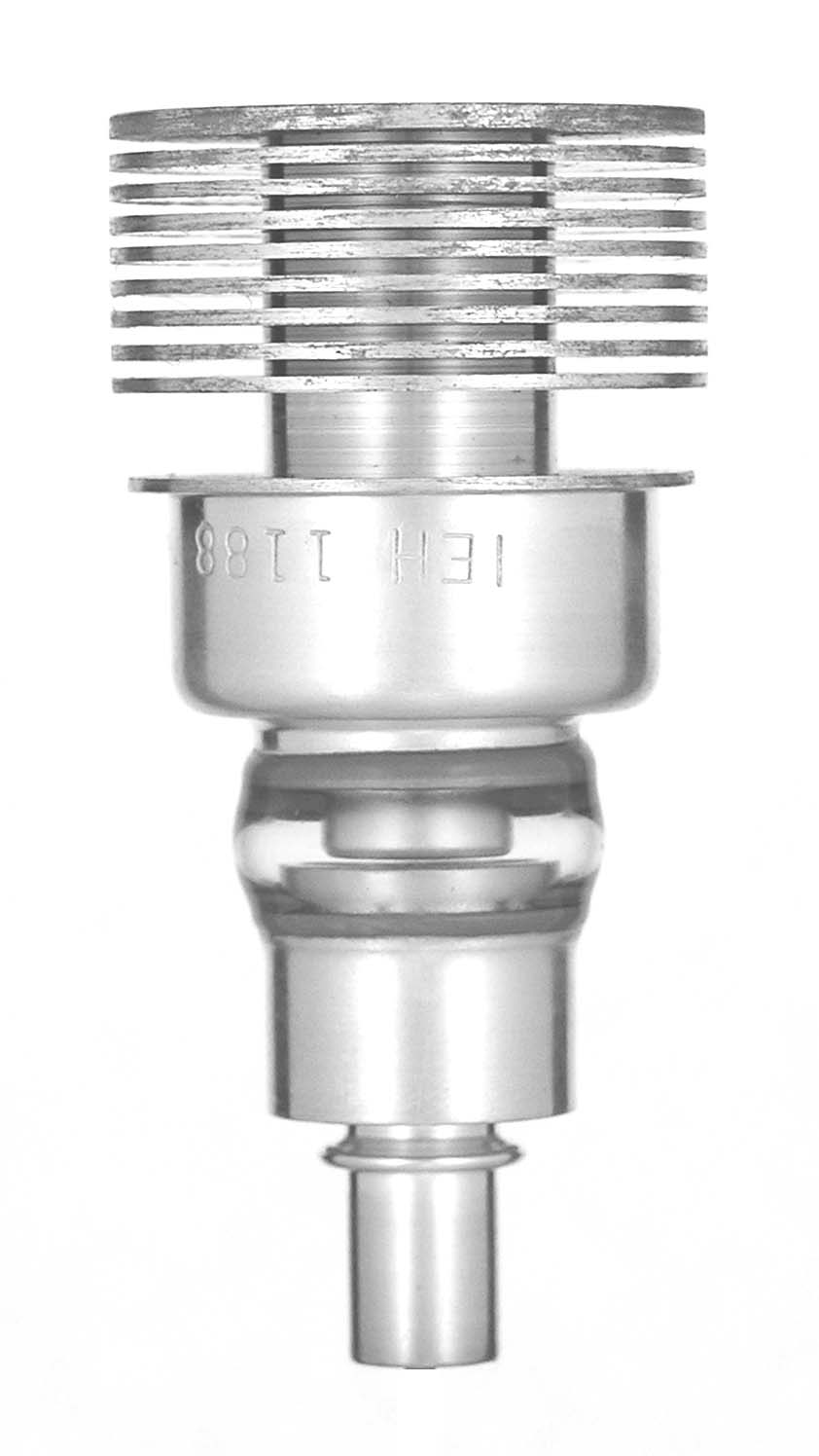

ML-381

The ML-381 is a 100 watt planar triode with a mu of 100 that was designed for pulsed service up to 3 GHz.

Length = 2.70" Diameter = 1.25"
Max voltage = 3500
Max current = 100 ma
Fil voltage = 6.3
Fil current = 1 amps         GOTO INDEX
